Project Description

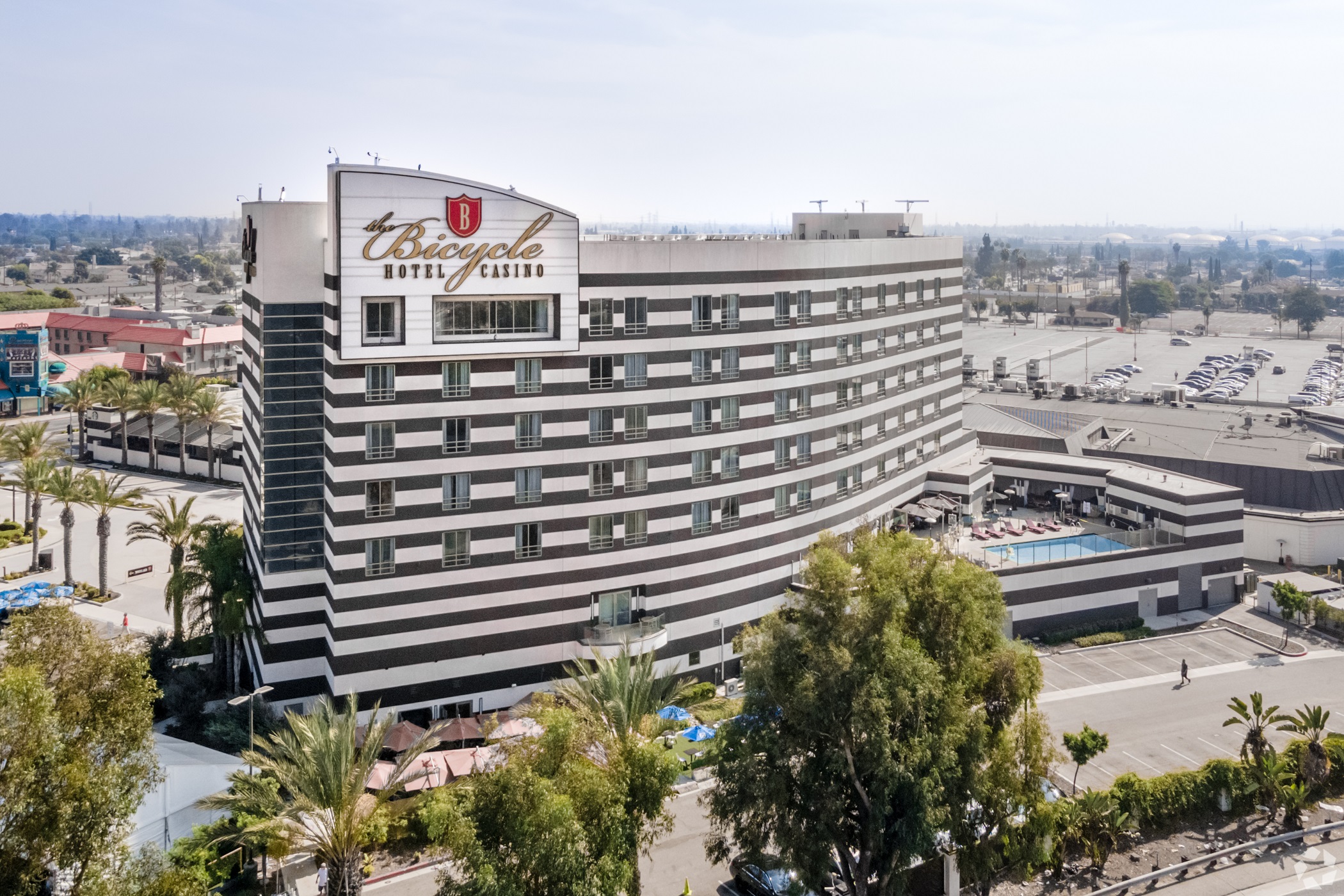

Bicycle Club Hotel & Casino

Project Details

0
square feet
0
days to erect
Location: Bell Gardens, CA
Owner: Bicycle Club
GC: R.D. Olson
Engineer: Englekirk Structural Engineering
Architect: Lee & Sakahara

Project Narrative

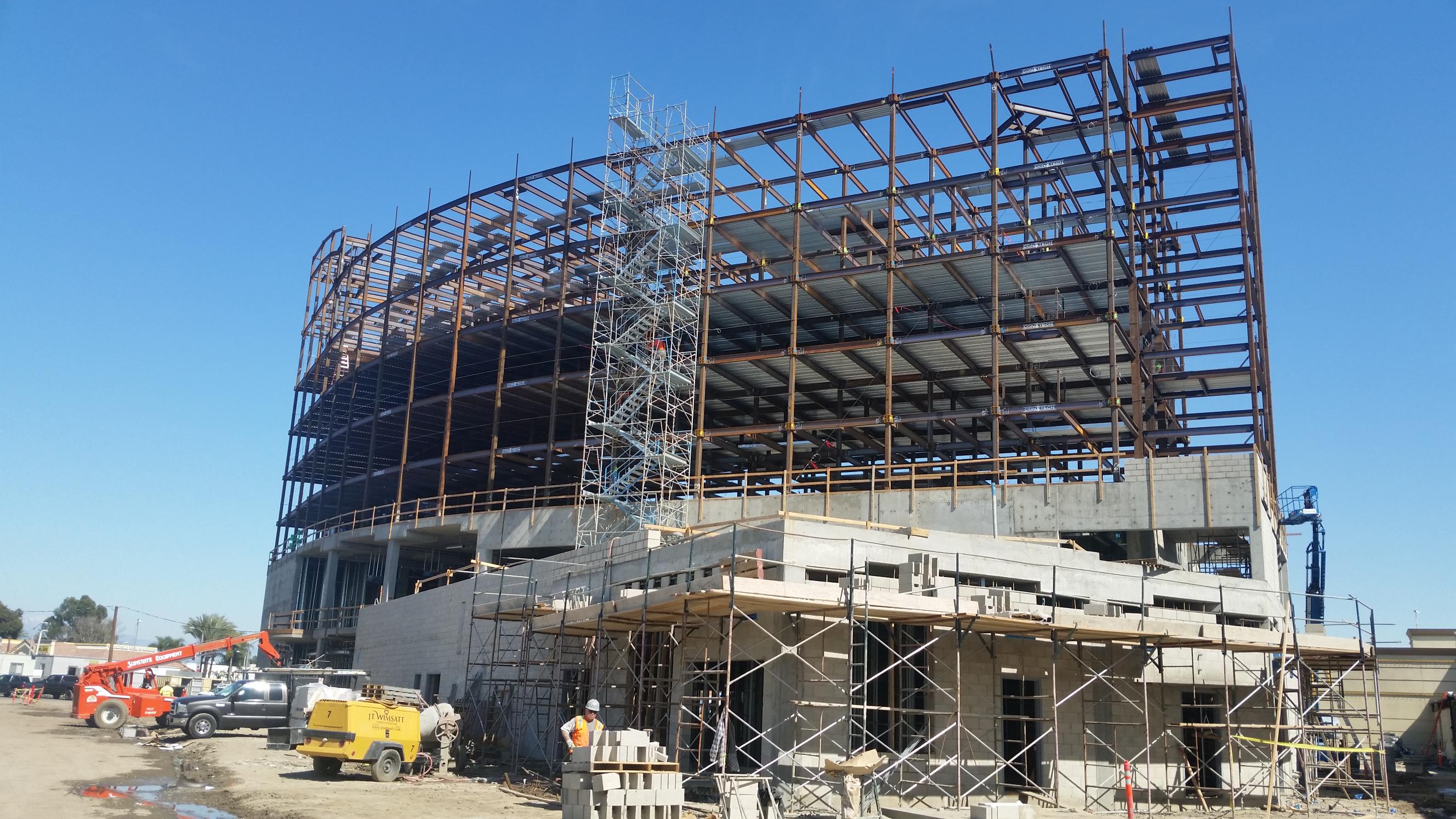

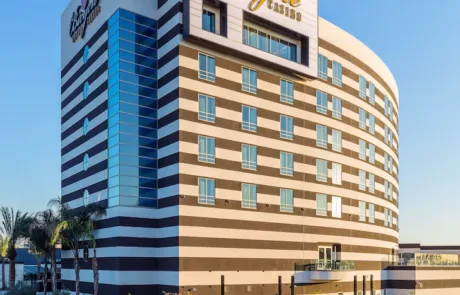

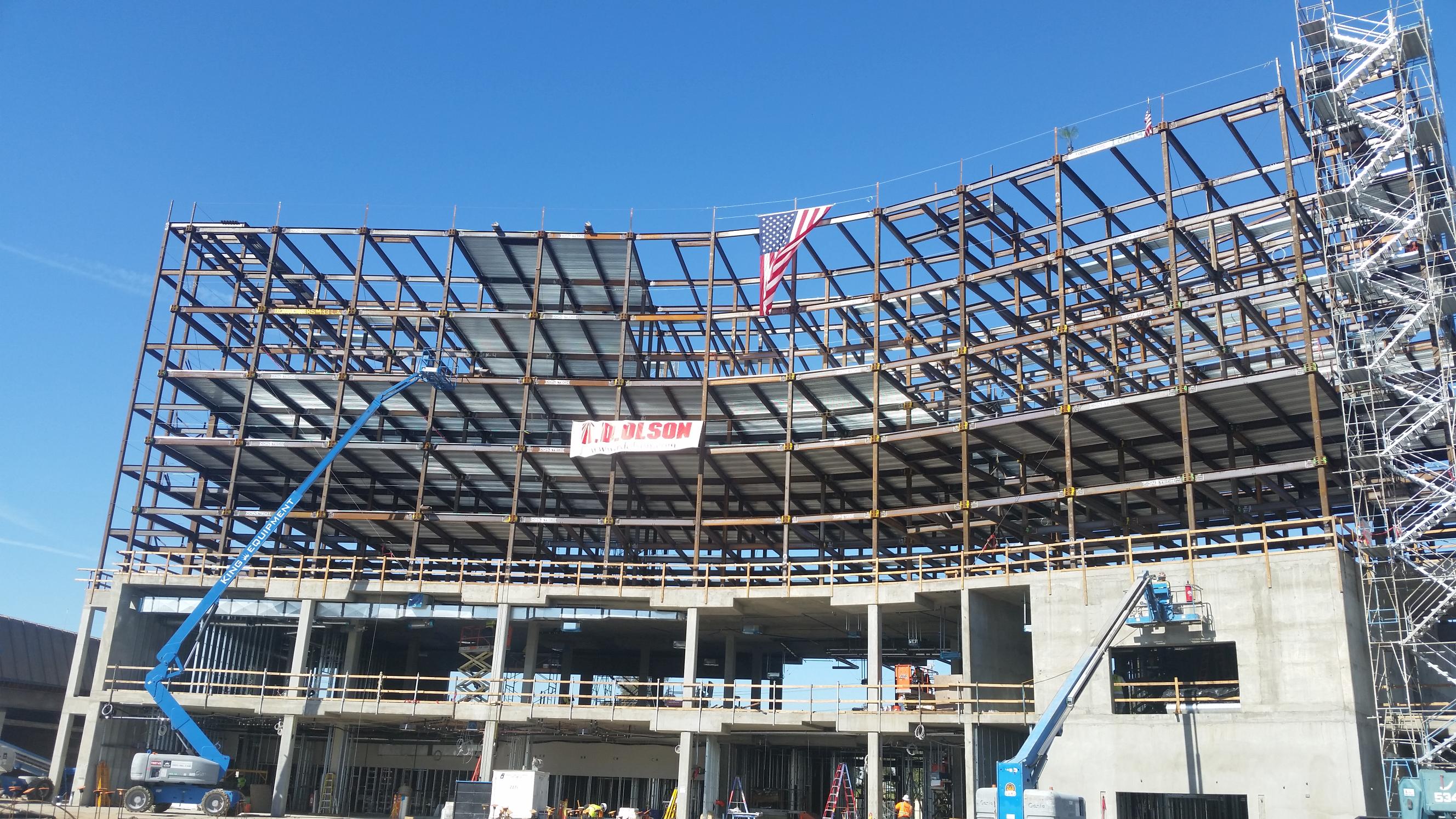

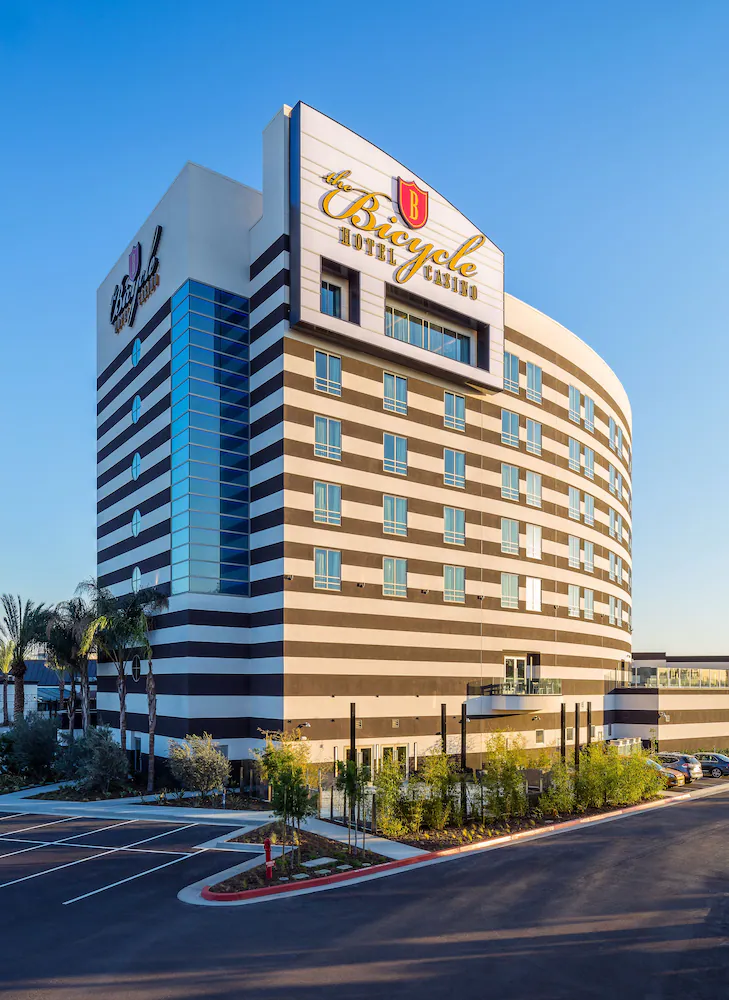

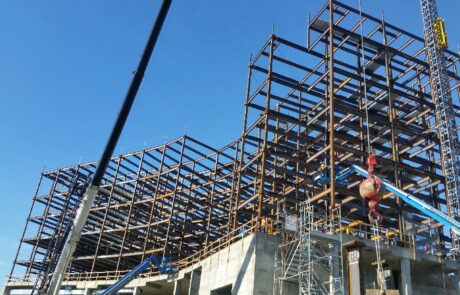

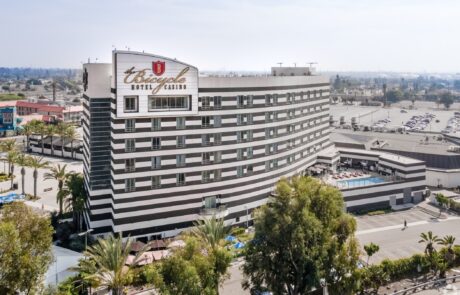

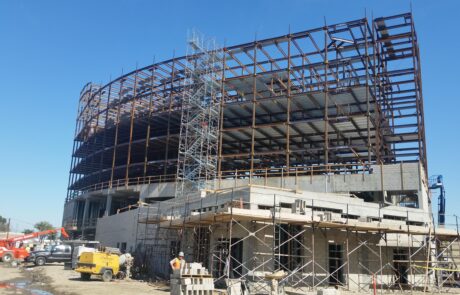

This six-story, 71,730 ft2, hybrid linear/polar radial grid hotel tower was erected over a 30 foot, two-story podium. The 99-room tower is adjacent to other peripheral facilities currently under construction, which will include several restaurants, a top-notch brewery, a luxurious Hotel Spa, a state-of-the-art fitness center, an elevated temperature controlled outdoor pool and sundeck with outdoor bar, as well as a full service event space for live entertainment. These features are in addition to the existing casino which hosts one the largest card rooms in the country.

ConX Solutions

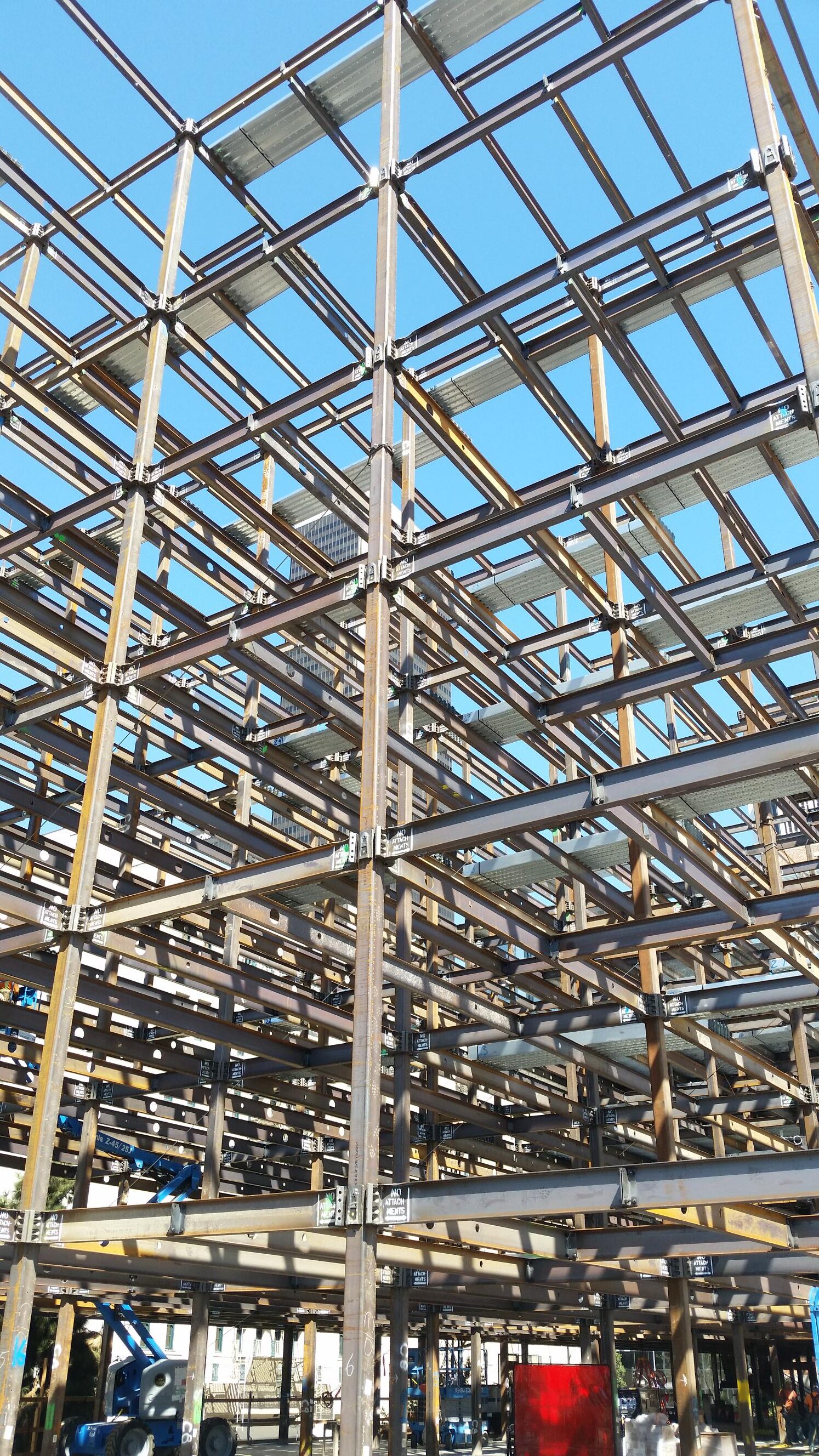

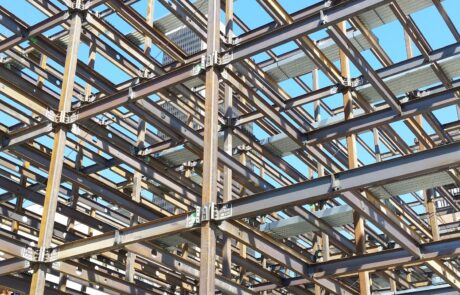

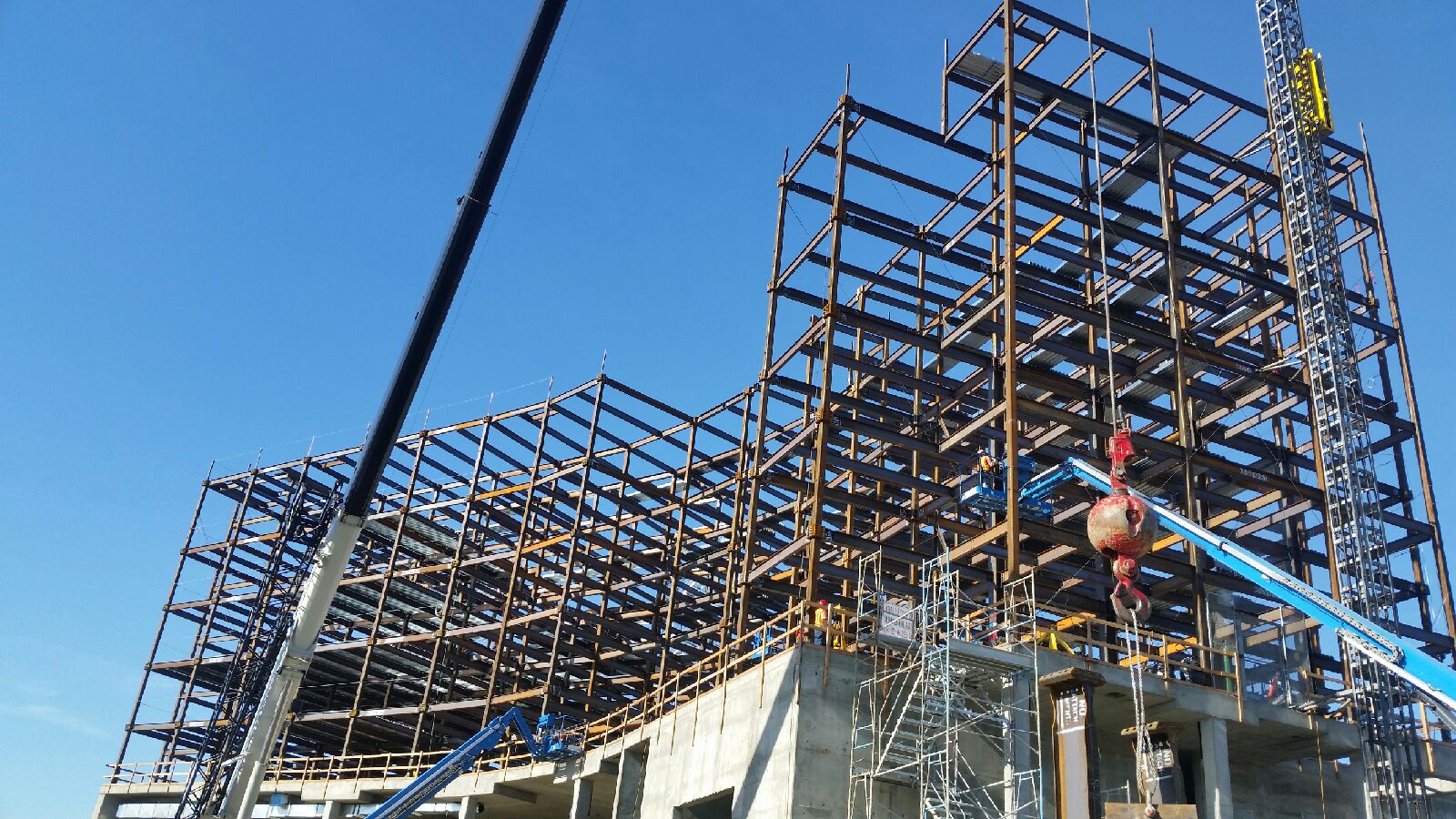

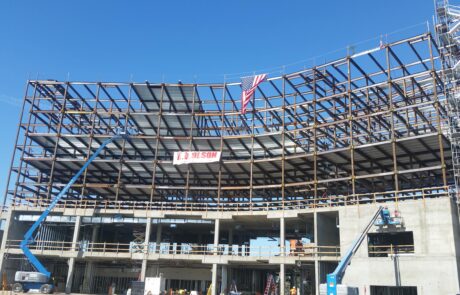

Assembled in 15 days, the ConX frame saved over a month from the general contractor’s original schedule. Efficient frame spacing and zero bracing assisted in achieving program requirements and room layout flexibility.

Download Project Bio

This project has a ConXR™ 200 chassis:

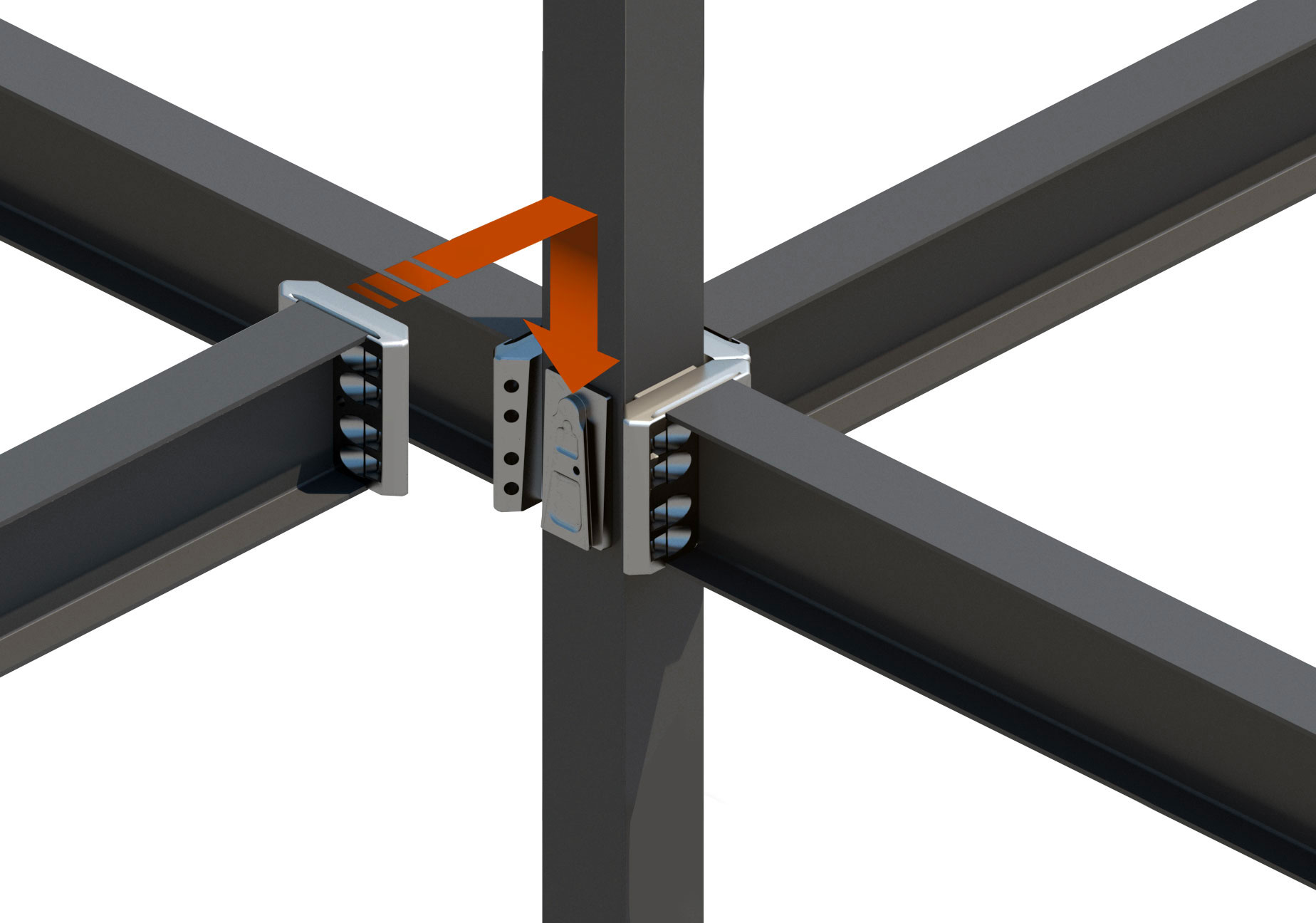

Lower & Locking™ Connection

ConXR 200 System Connection
ConXR 200

Height & Assembly Speed

  • 4 to 8 Stories, up to 12

  • 3 to 5,000 ft2 per day

Design Parameters

Column Size 200 mm (8″ HSS)
Beam Depth 12″ (variable weight)
Beam Spans 8′ to 20′
