Project Description

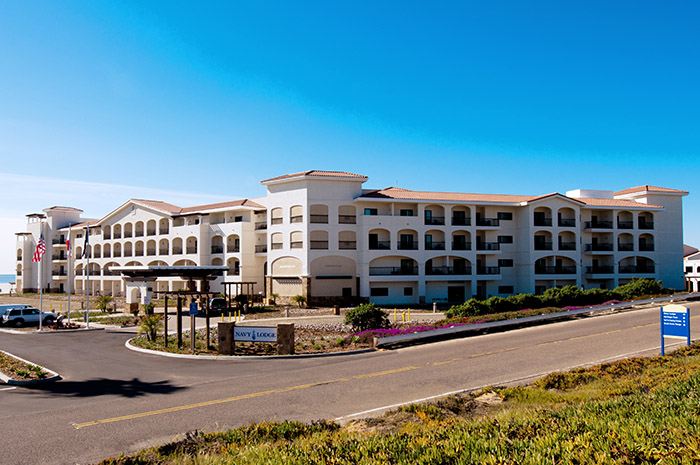

Navy Lodge

Project Details

0
square feet
0
days to erect
Location: North Island, Coronado, CA
Owner: US Navy (NAVFAC)
GC: RQ Construction, LLC
Engineer: GPLA – Gregory P. Luth and Associates
Architect: RQ Construction, LLC

Project Narrative

This 146,500 ft2, 205 room Navy Lodge project was originally designed as 4 story wood over grade. When the Department of Defense updated their Unified Facilities Criteria, aggressive Anti Terrorism Force Protection (ATFP), Progressive Collapse, and blast resistance standards needed to be met. ConXtech’s inherently robust structural connection met and exceeded the criterium and was quickly converted to the ConXR structural solution. The frame erected in 25 working days.

Read more about the codification of the ConX System, our test frames and procedures and resistance to progressive collapse in this Technical Summaries document.

ConX Solutions

  • DoD / NAVFAC requirements stated in Unified Facilities Criteria
  • Integrated Project Delivery
  • USGBC LEED Silver Rating
  • 100% Building Information Modeling integration among project trades
Download Project Bio

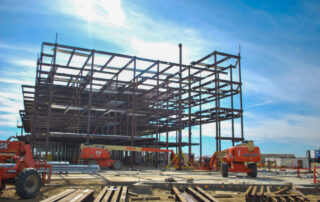

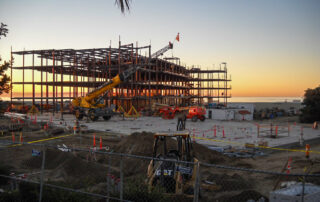

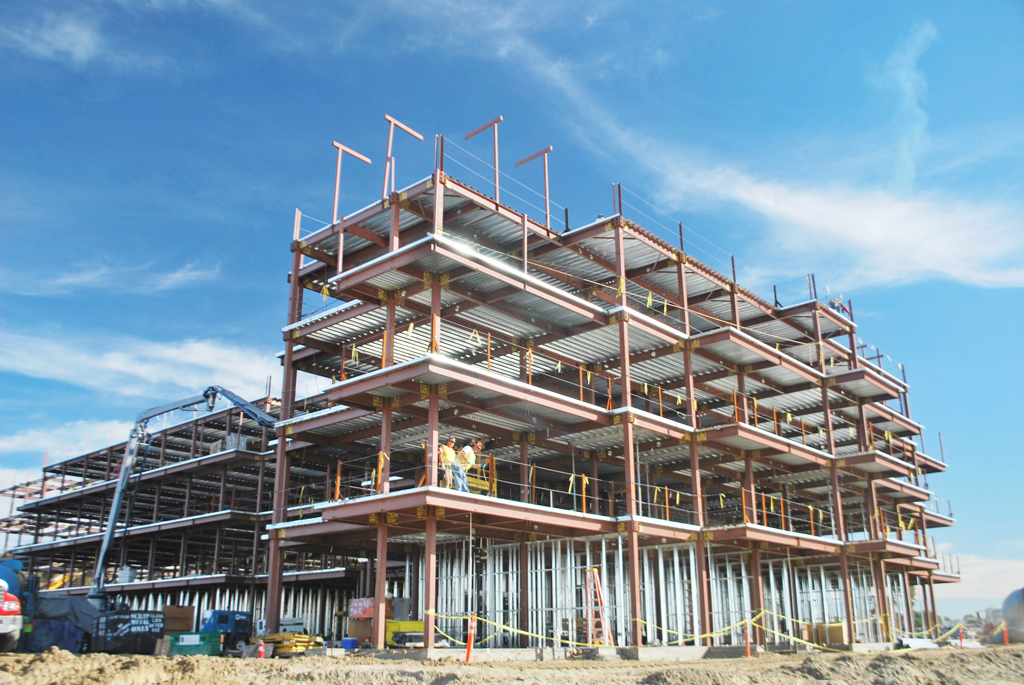

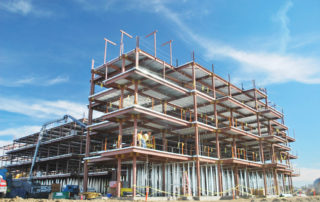

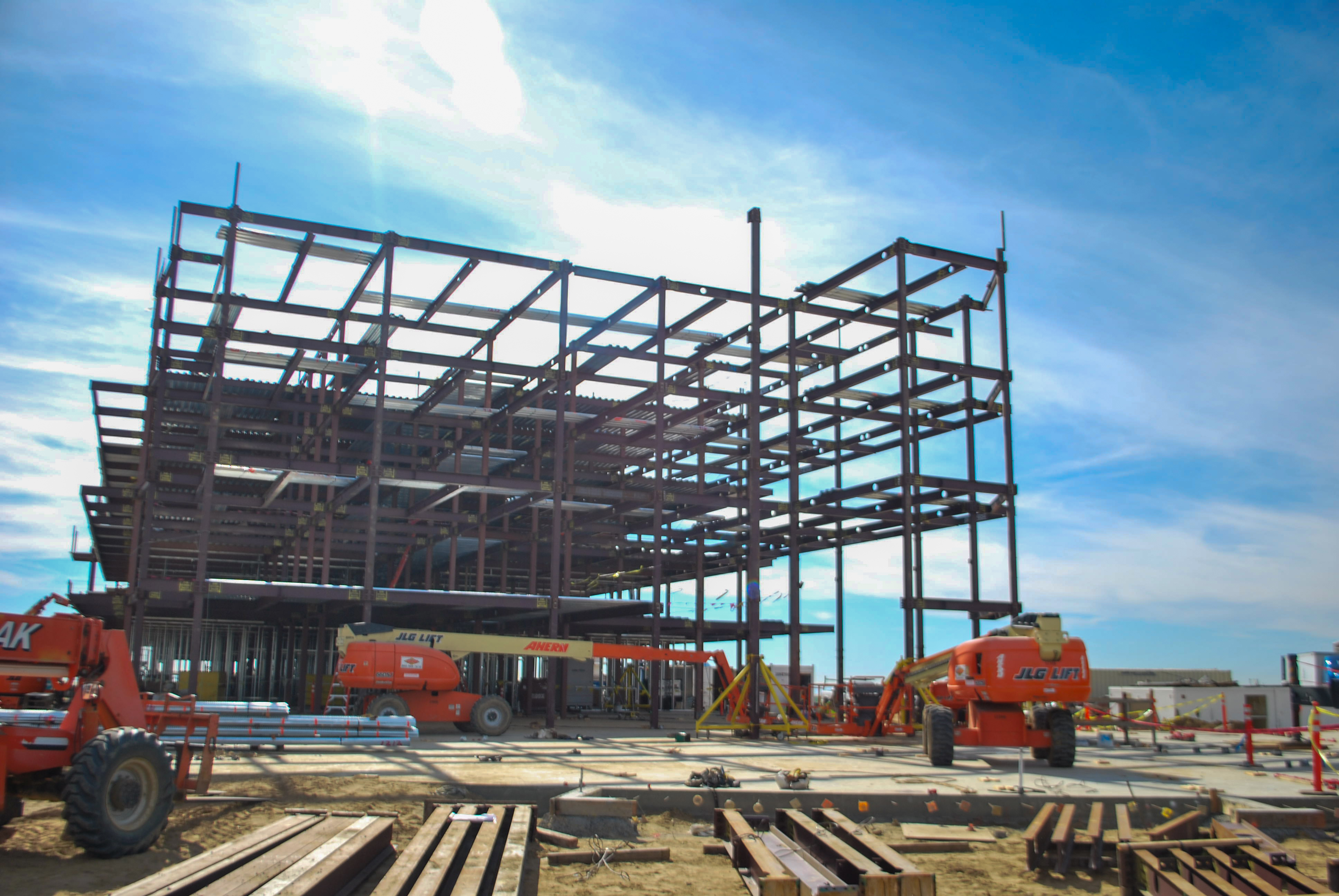

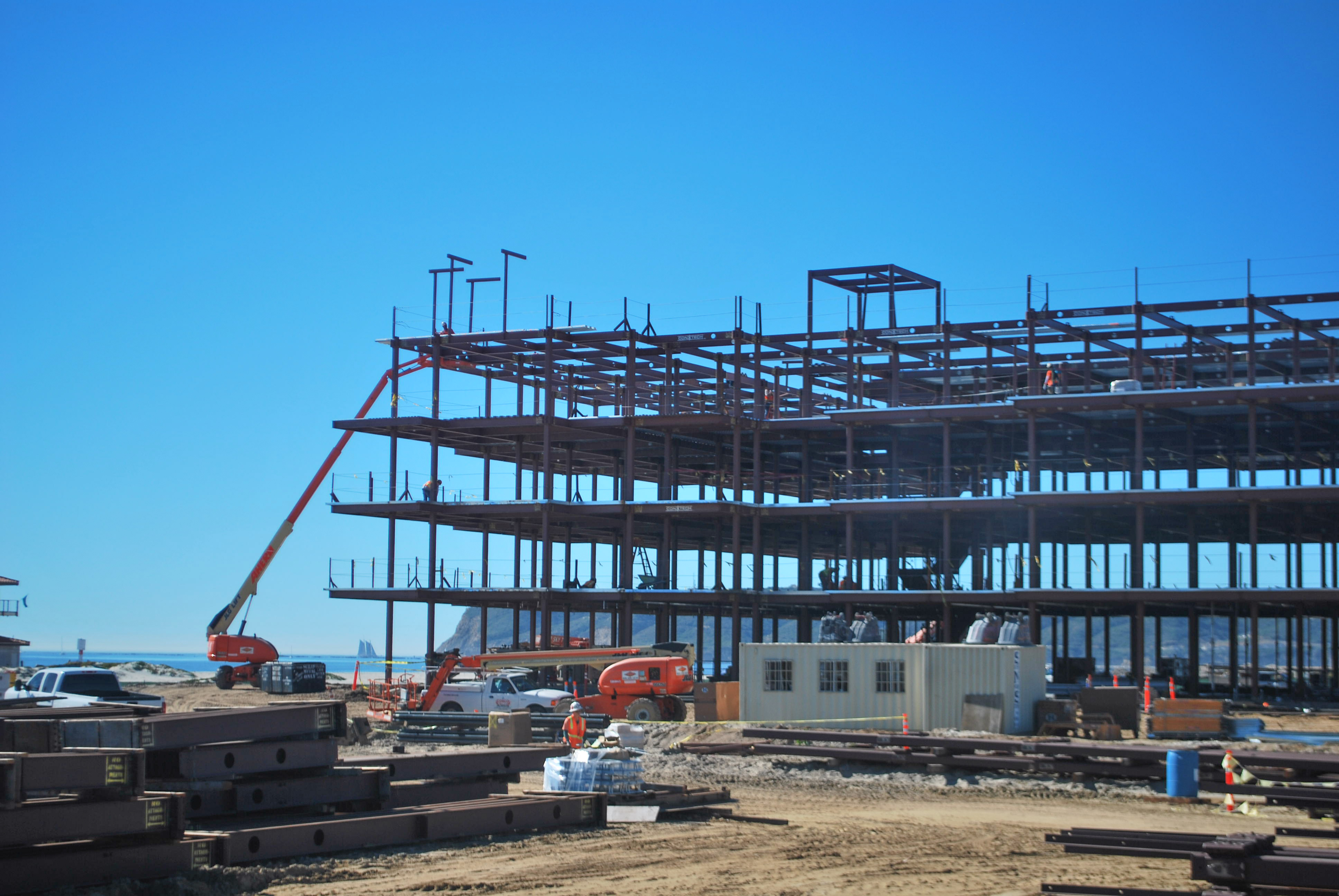

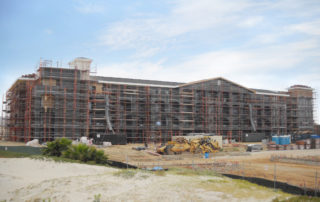

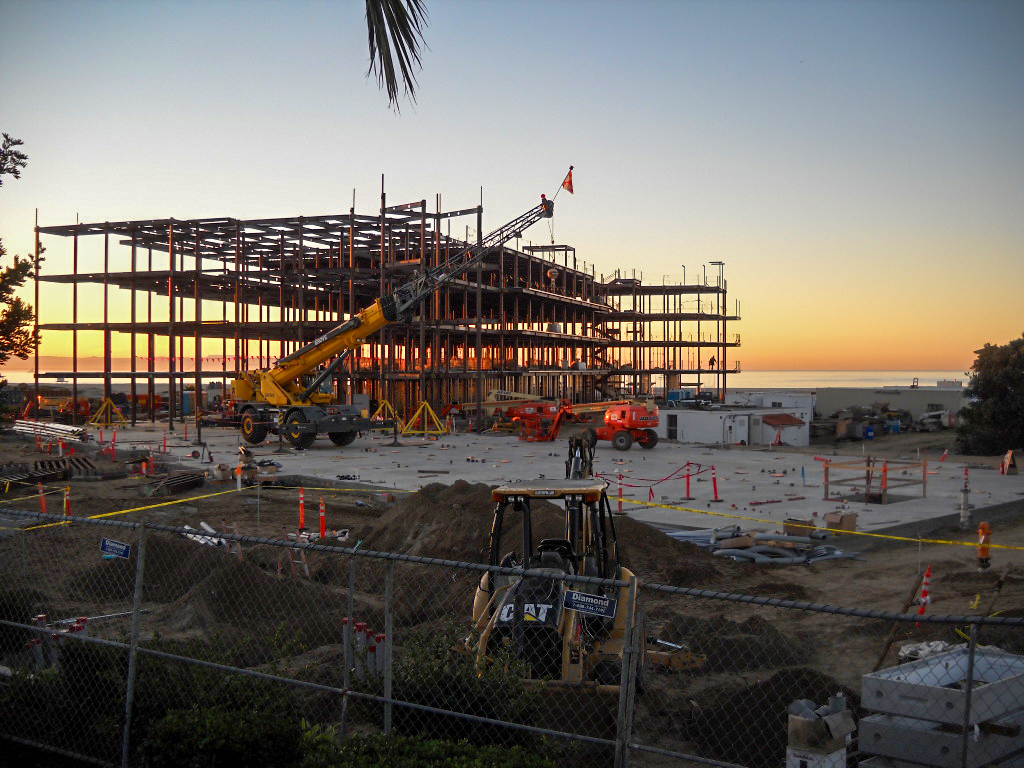

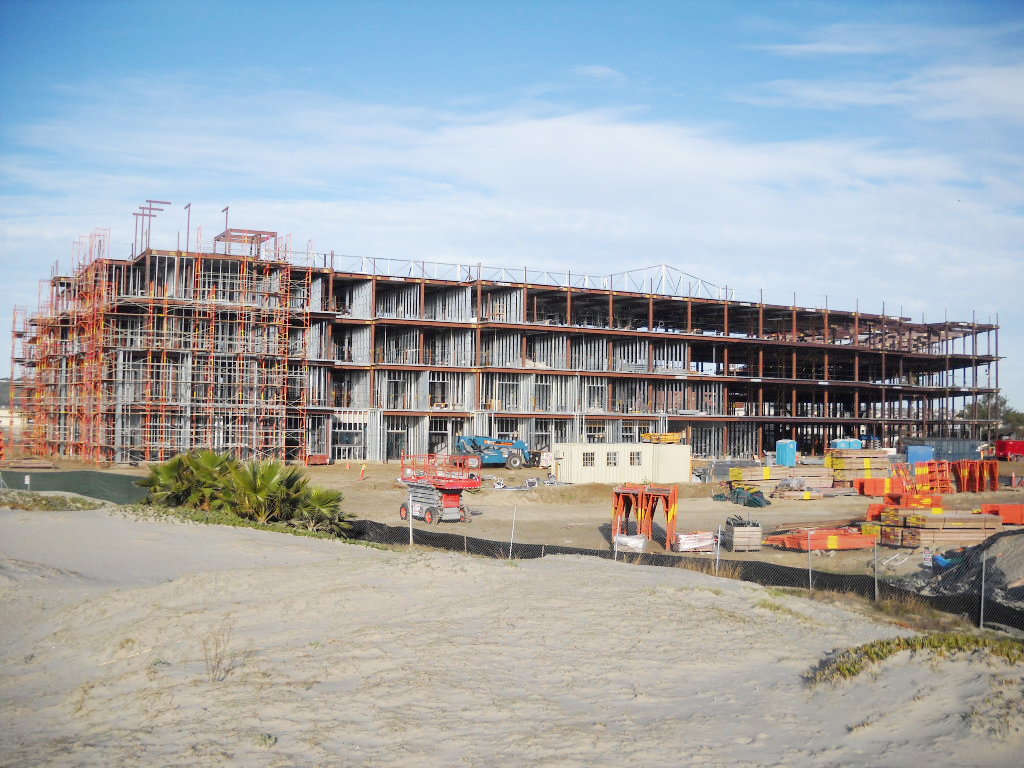

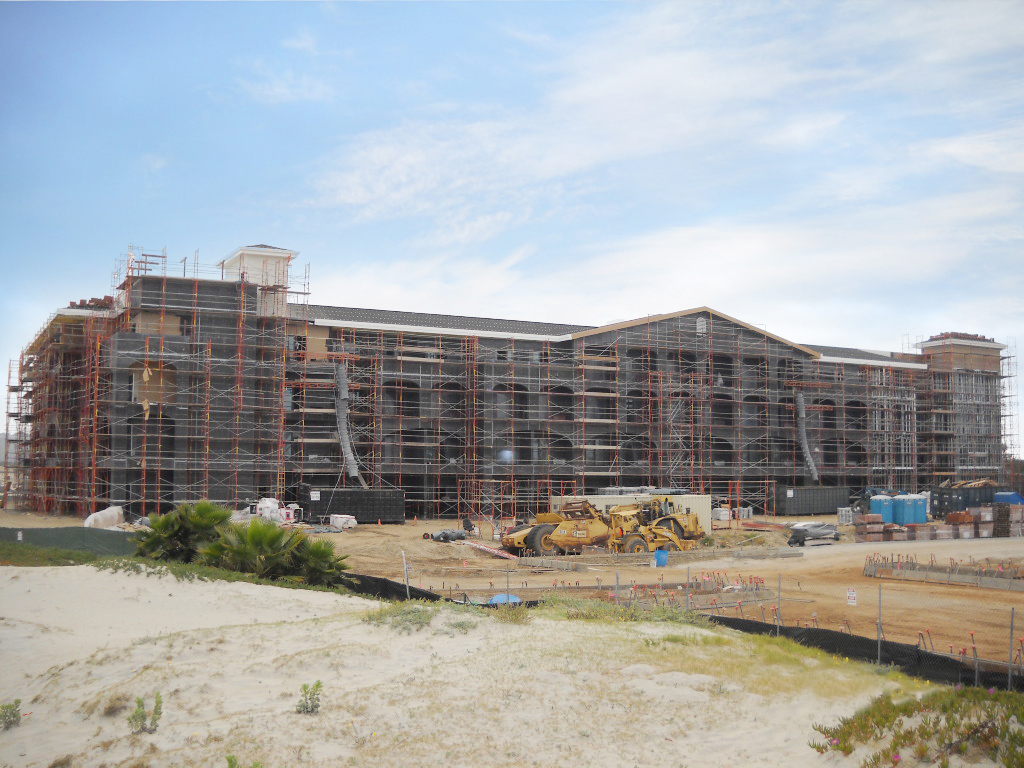

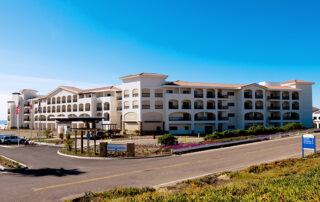

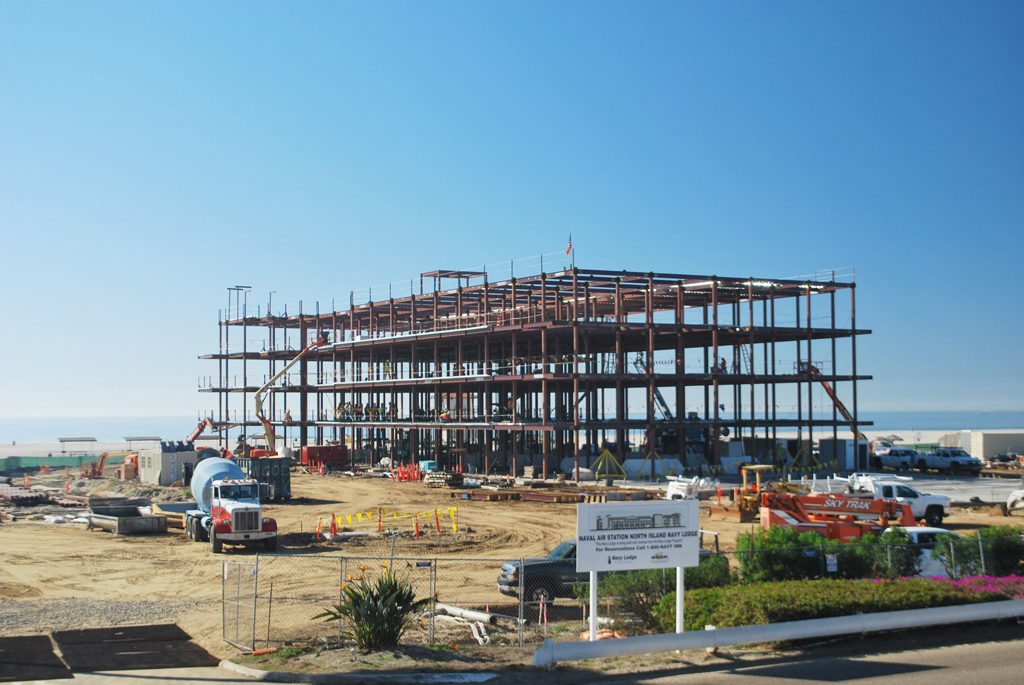

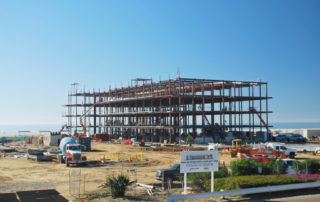

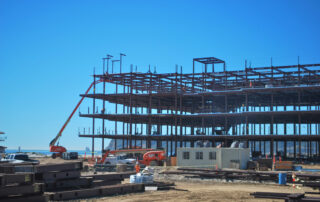

Photo Gallery

This project has a ConXR™ 200 chassis:

Lower & Locking™ Connection

ConXR 200 System Connection
ConXR 200

Height & Assembly Speed

  • 4 to 8 Stories, up to 12

  • 3 to 5,000 ft2 per day

Design Parameters

Column Size 200 mm (8″ HSS)
Beam Depth 12″ (variable weight)
Beam Spans 8′ to 20′
