Project Description

Van Nuys Assisted Living

Project Details

0
square feet
0
days to erect
Location: Van Nuys, CA
Owner: 7040 Van Nuys Partnership, LLC
GC: Landmark View, Inc.
Engineer: Ashley & Vance
Architect: Hochhauser Blatter

Project Narrative

This 80,500 ft2 assisted living facility in Van Nuys, CA features 132 units and includes amenities such as a fitness center, beauty salon, movie theater, library, bistro lounge, wine bar, two-story “Great Room” and multiple courtyards.

ConX Solutions

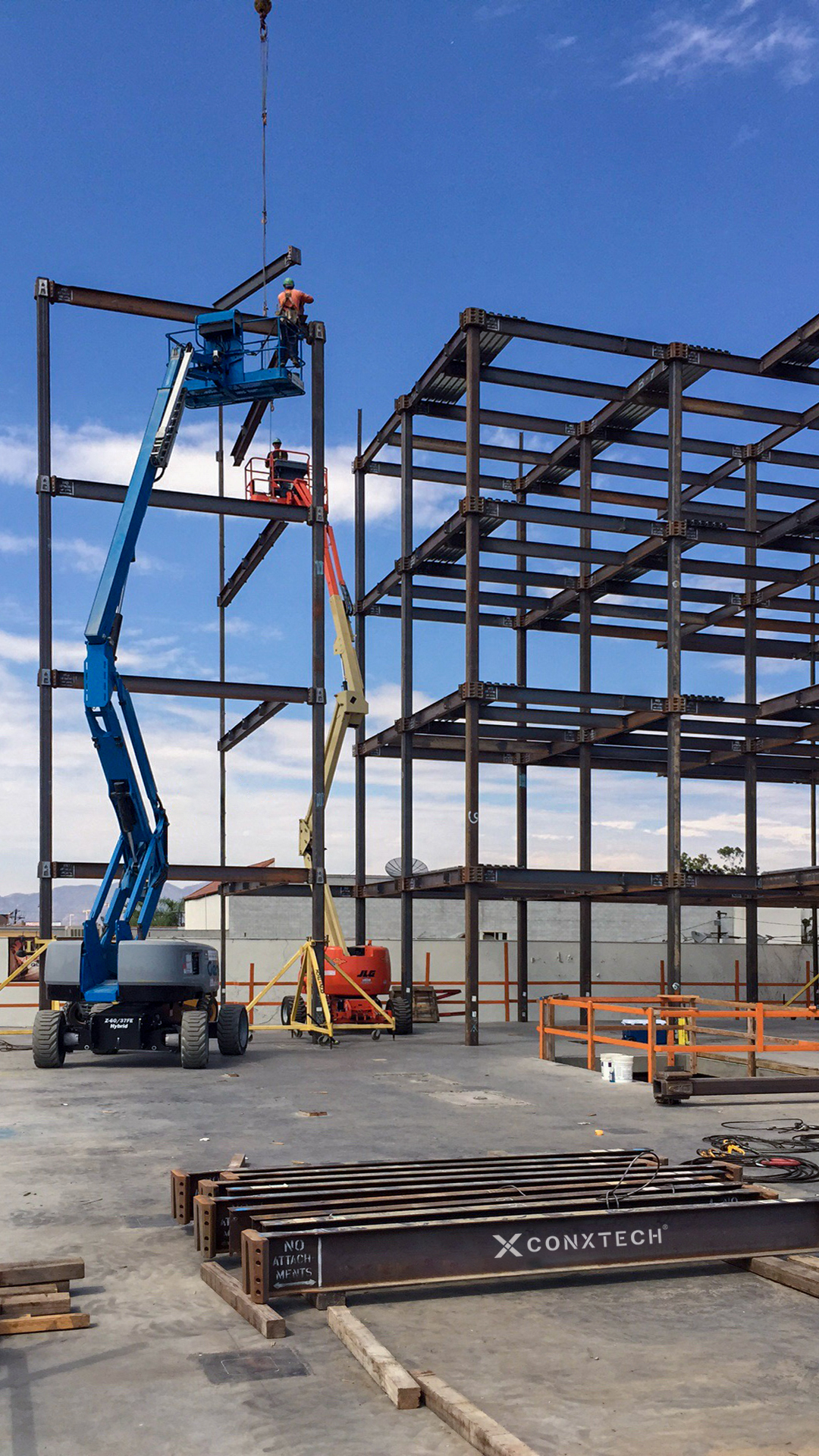

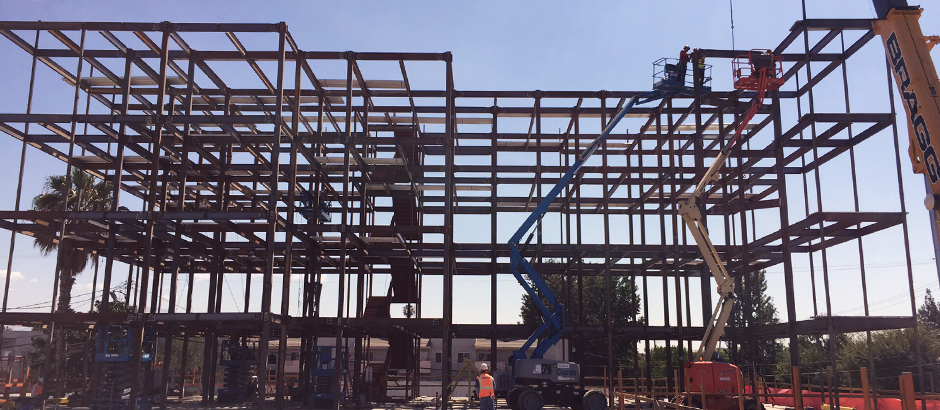

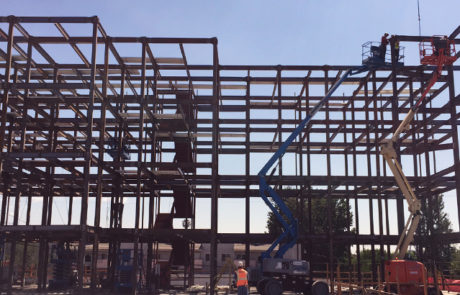

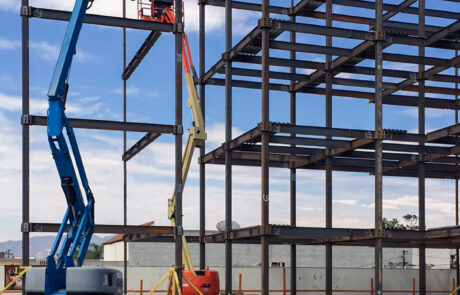

The ConXR 200 System, with long span W21 & W16 frames in the center, created a large open communal area for residents. Due to a thinner-than-usual podium, the steel was erected quickly with lighter weight equipment to keep loading to a minimum. The site footprint was extremely tight, so the efficiency of the steel assembly helped minimize disruption to surrounding neighbors.

ConXR 200 is ideal for hospitality, high density residential, assisted living, student housing and many other applications. Contact info@conxtech.com to learn more.

Download Project Bio

This project has a ConXR™ 200 chassis:

Lower & Locking™ Connection

ConXR 200 System Connection
ConXR 200

Height & Assembly Speed

  • 4 to 8 Stories, up to 12

  • 3 to 5,000 ft2 per day

Design Parameters

Column Size 200 mm (8″ HSS)
Beam Depth 12″ (variable weight)
Beam Spans 8′ to 20′
