Project Description

Broadway Grand

Project Details

0
square feet
0
days to erect
Location: Oakland, CA
Owner: Signature Development Group
GC: Signature Development Group
Engineer: Nishkian Menninger
Architect: MBH Architects

Project Narrative

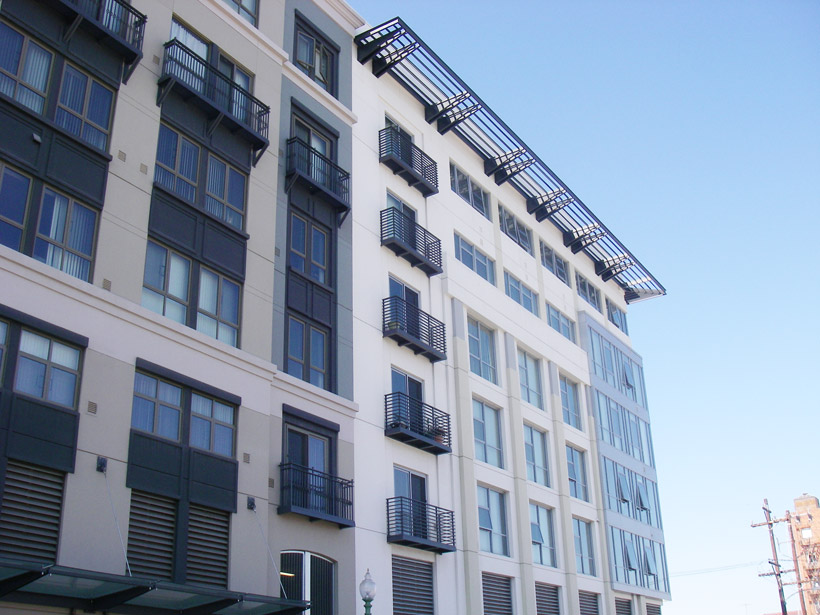

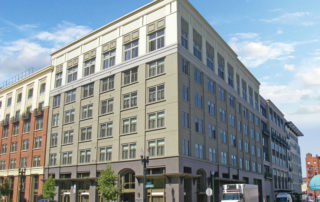

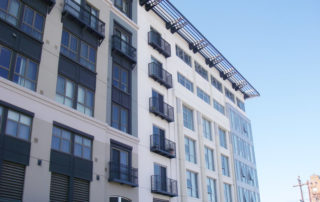

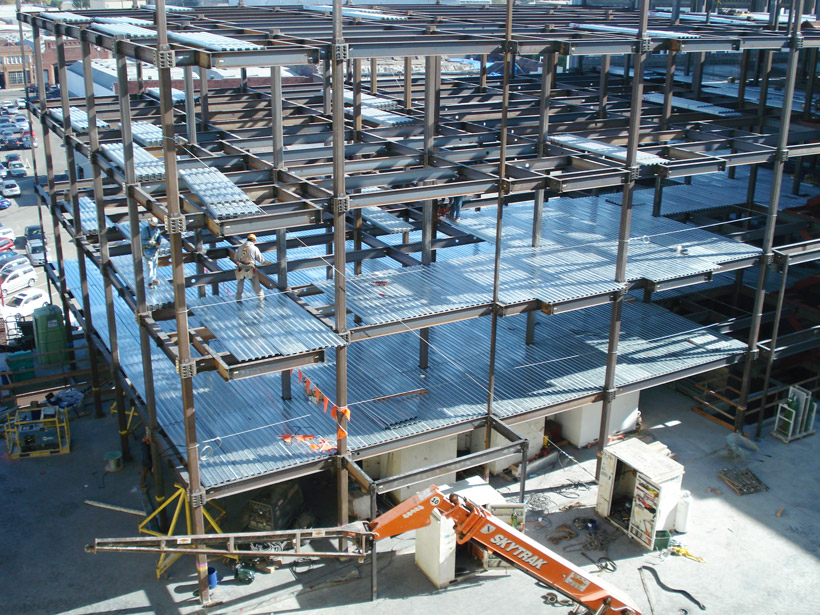

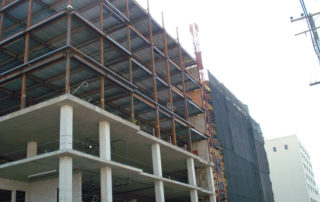

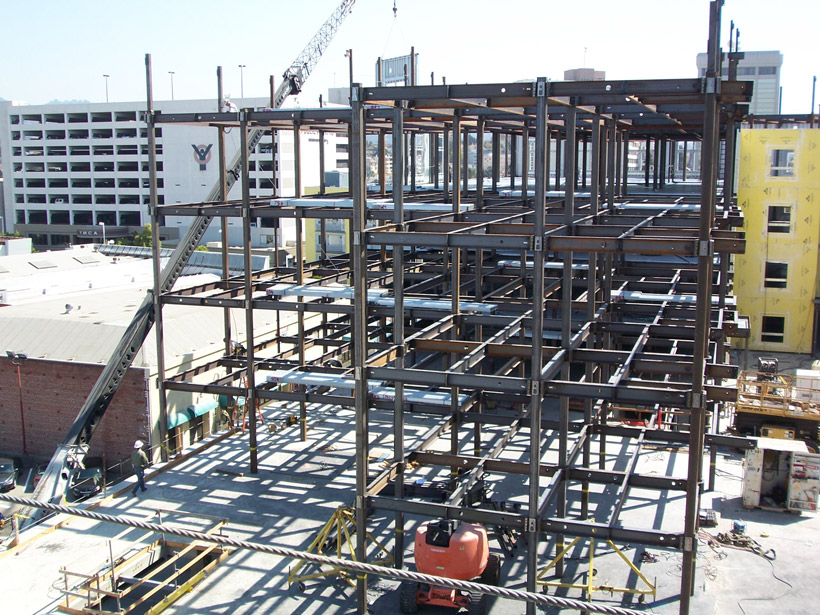

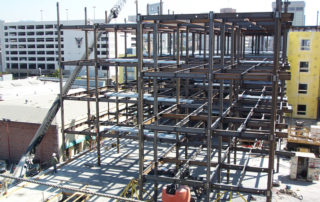

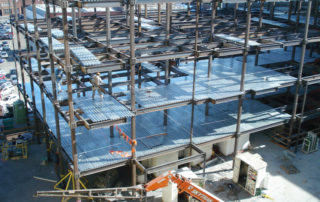

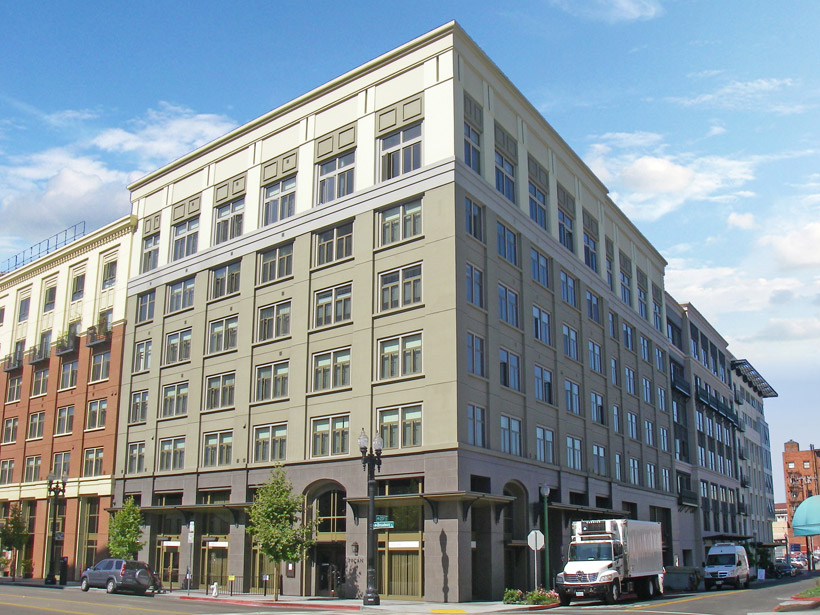

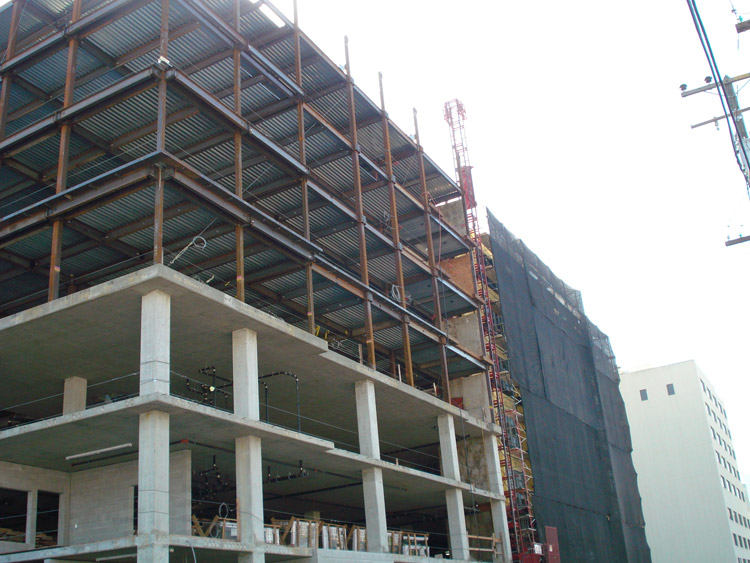

Located on the corner of Broadway and Grand in downtown Oakland CA, the 186,000 ft2 4 and 5 story ConX moment frame structure sits atop a 2 and 3 story parking and retail concrete podium. Originally designed entirely as a concrete structure, ConXtech’s space frame characteristics allowed the architect unlimited flexibility in the residential units while maintaining optimal parking and retail layout below. With the speed of erection and reduction in overall building weight, ConXtech was able to provide substantial savings in the foundation and overall project schedule, with final completion four months earlier than the original design.

ConX Solutions

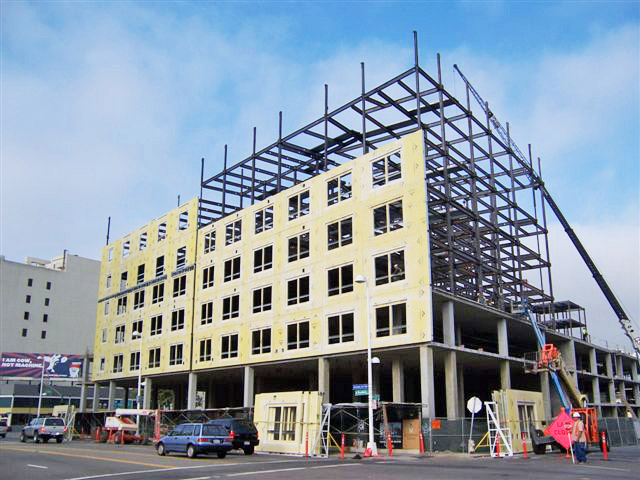

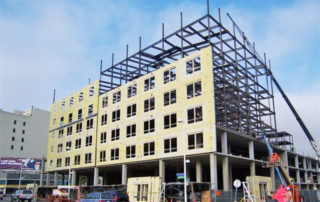

With the project covering an entire city block, changes in architectural finishes made the integration of the exterior wall system and the structural steel model a must. Each panel was modeled in conjunction with the structural steel enabling a rapid and seamless installation in the field.

Download Project Bio

Project Gallery

This project has a ConXR™ 200 chassis:

Lower & Locking™ Connection

ConXR 200 System Connection
ConXR 200

Height & Assembly Speed

  • 4 to 8 Stories, up to 12

  • 3 to 5,000 ft2 per day

Design Parameters

Column Size 200 mm (8″ HSS)
Beam Depth 12″ (variable weight)
Beam Spans 8′ to 20′
