Kaiser Permanente, Chino Grand

Project Details

square feet
days to erect
Location: Chino Hills, CA
Owner: Kaiser Permanente
GC: Whiting-Turner
Engineer: John A. Martin & Associates, ConXtech
Architect: HDR

Project Narrative

Kaiser Permanente Chino Grand offers 57 patient exam rooms and 42 provider offices. This location will have many new features and technologies including check-in kiosks, wait-time calculators, mobile physician workstations (for tablets and other devices), and an enhanced environment that includes tele-health capabilities and waiting areas that educate, entertain and reinforce Kaiser Permanente’s “Thrive” brand.

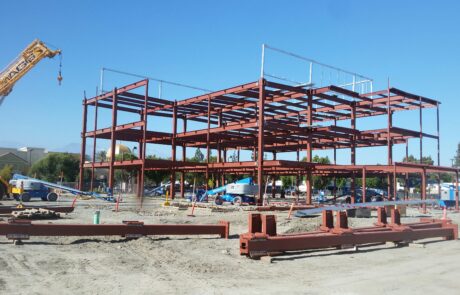

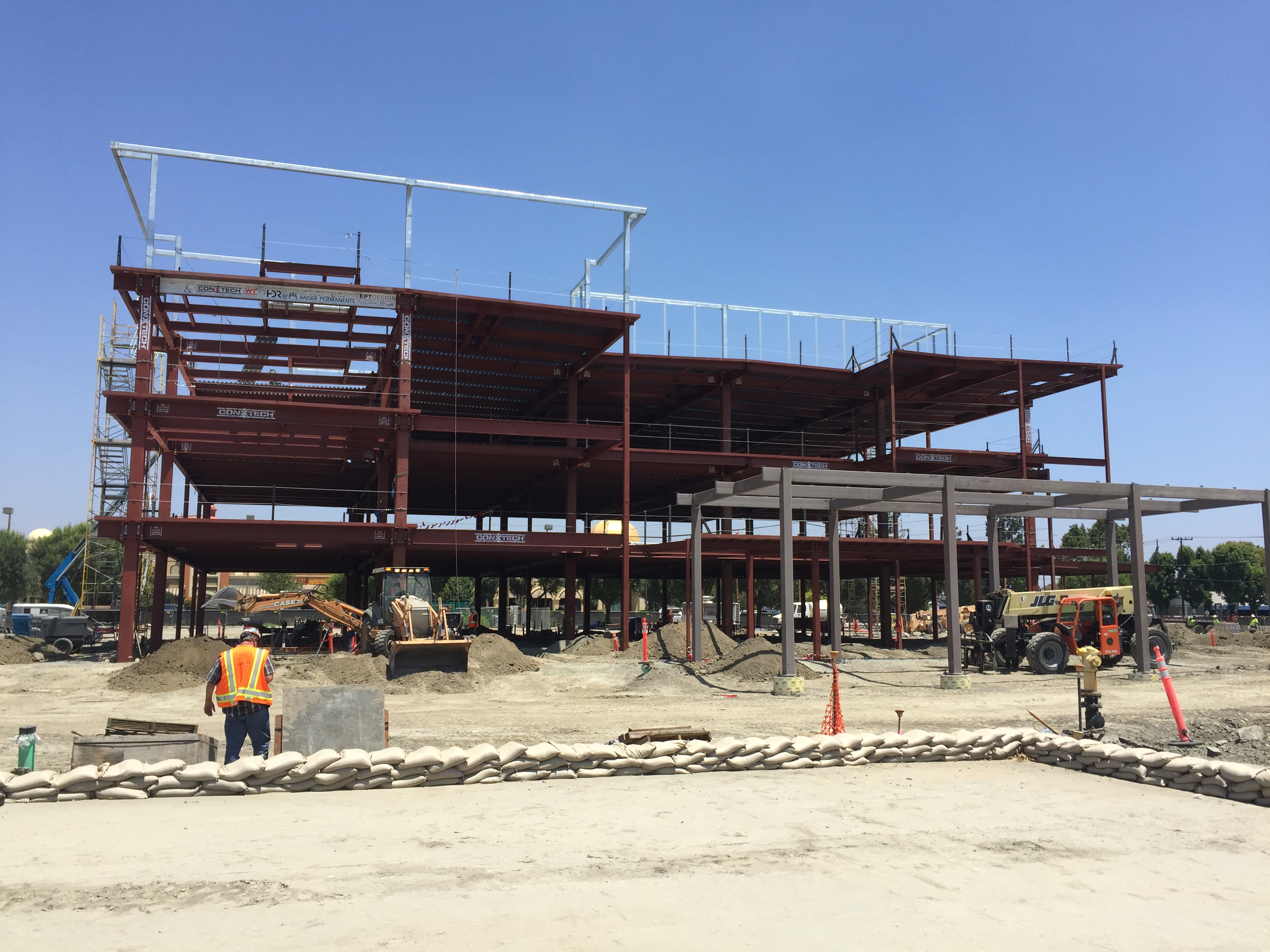

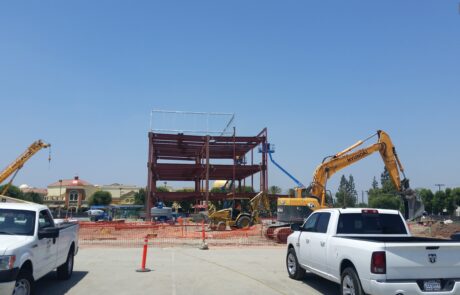

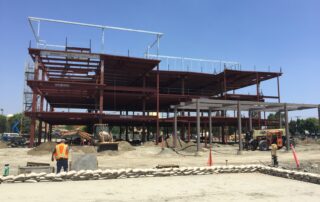

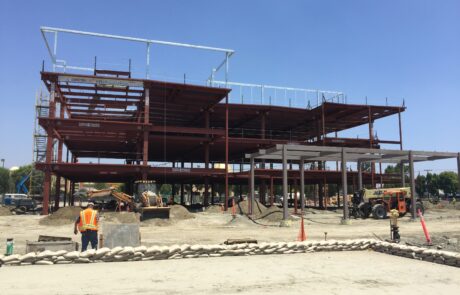

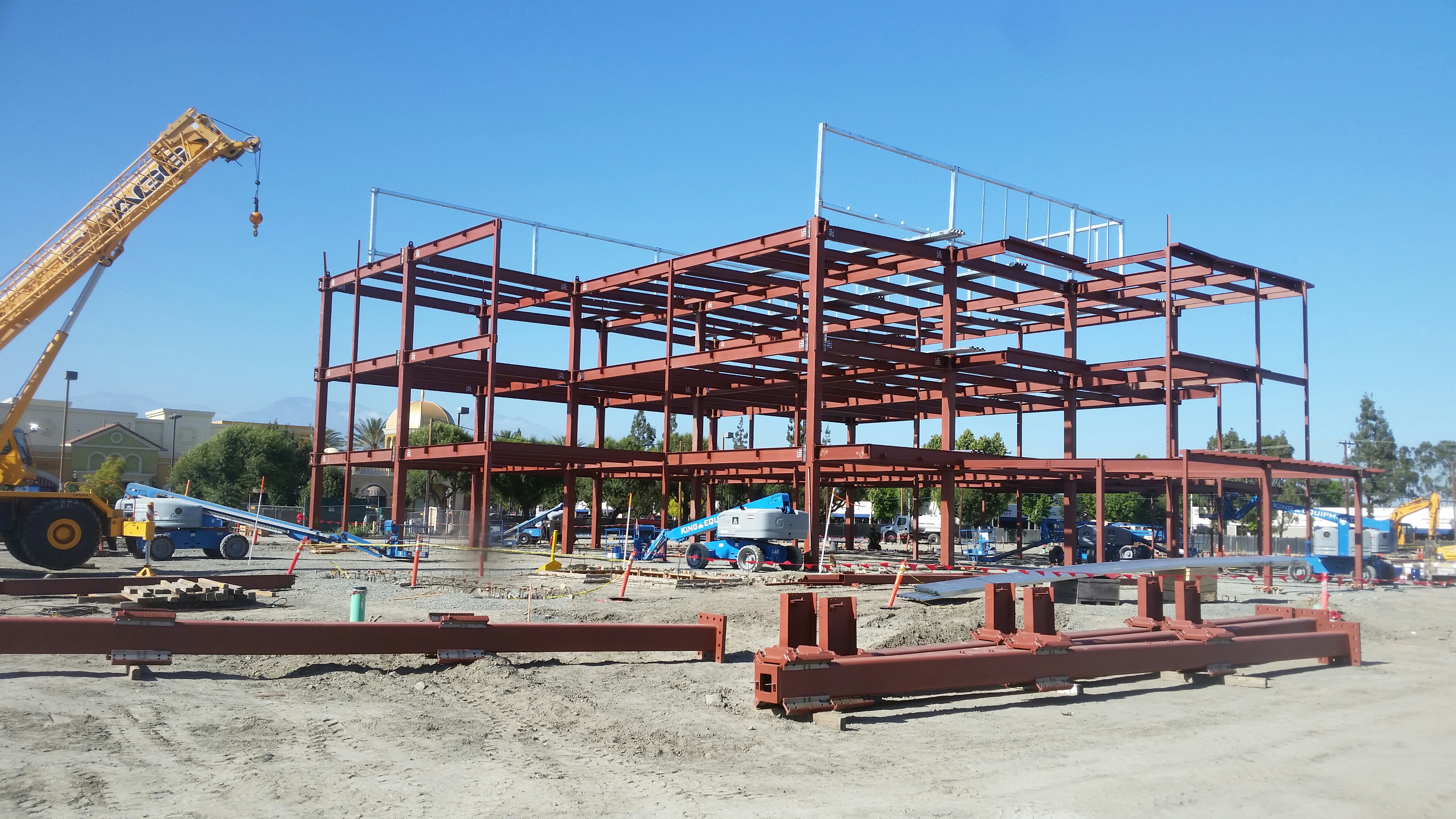

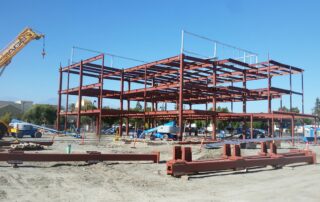

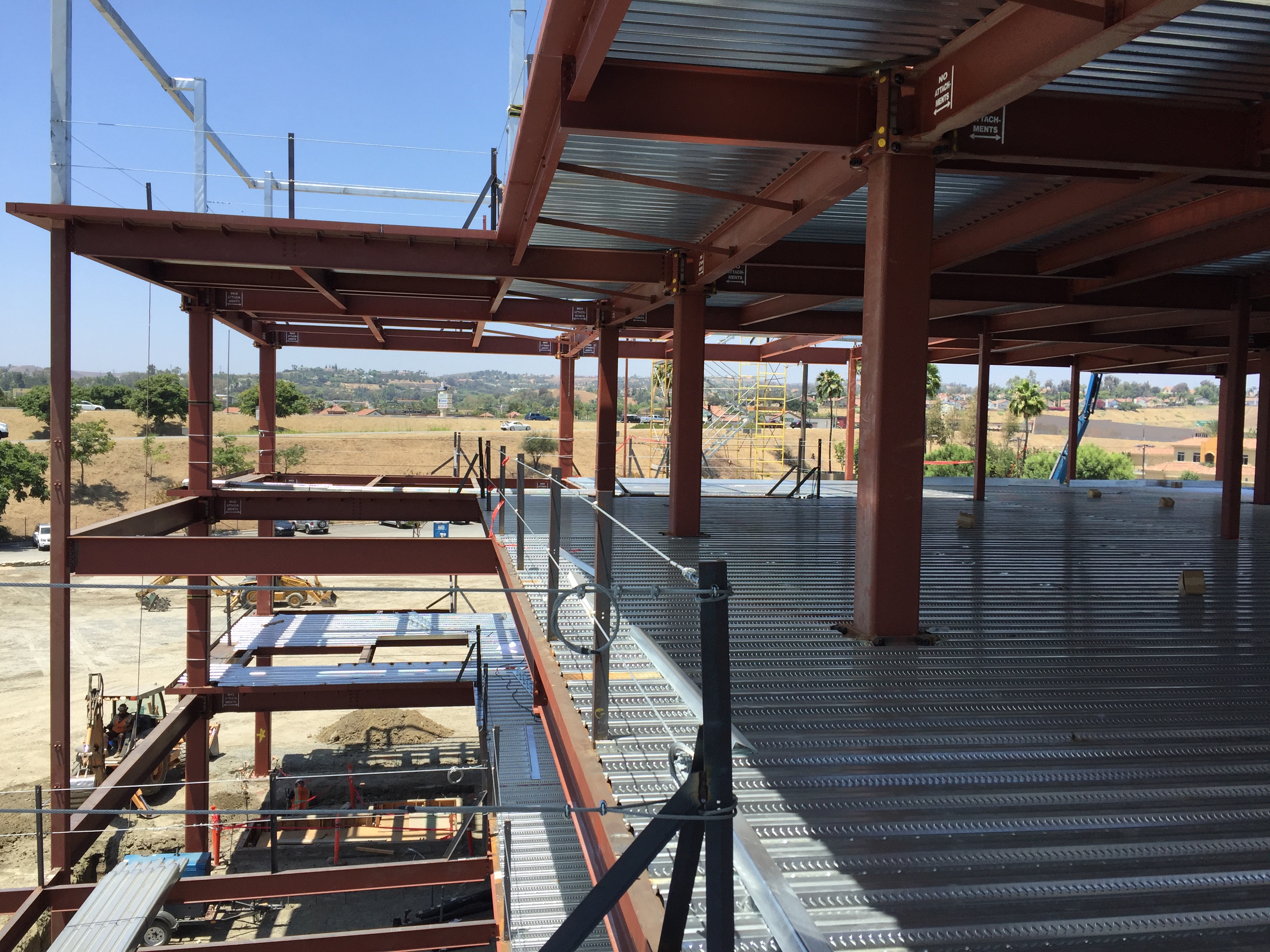

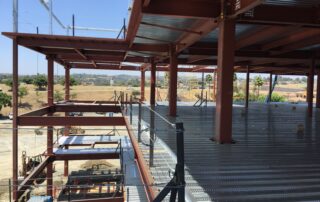

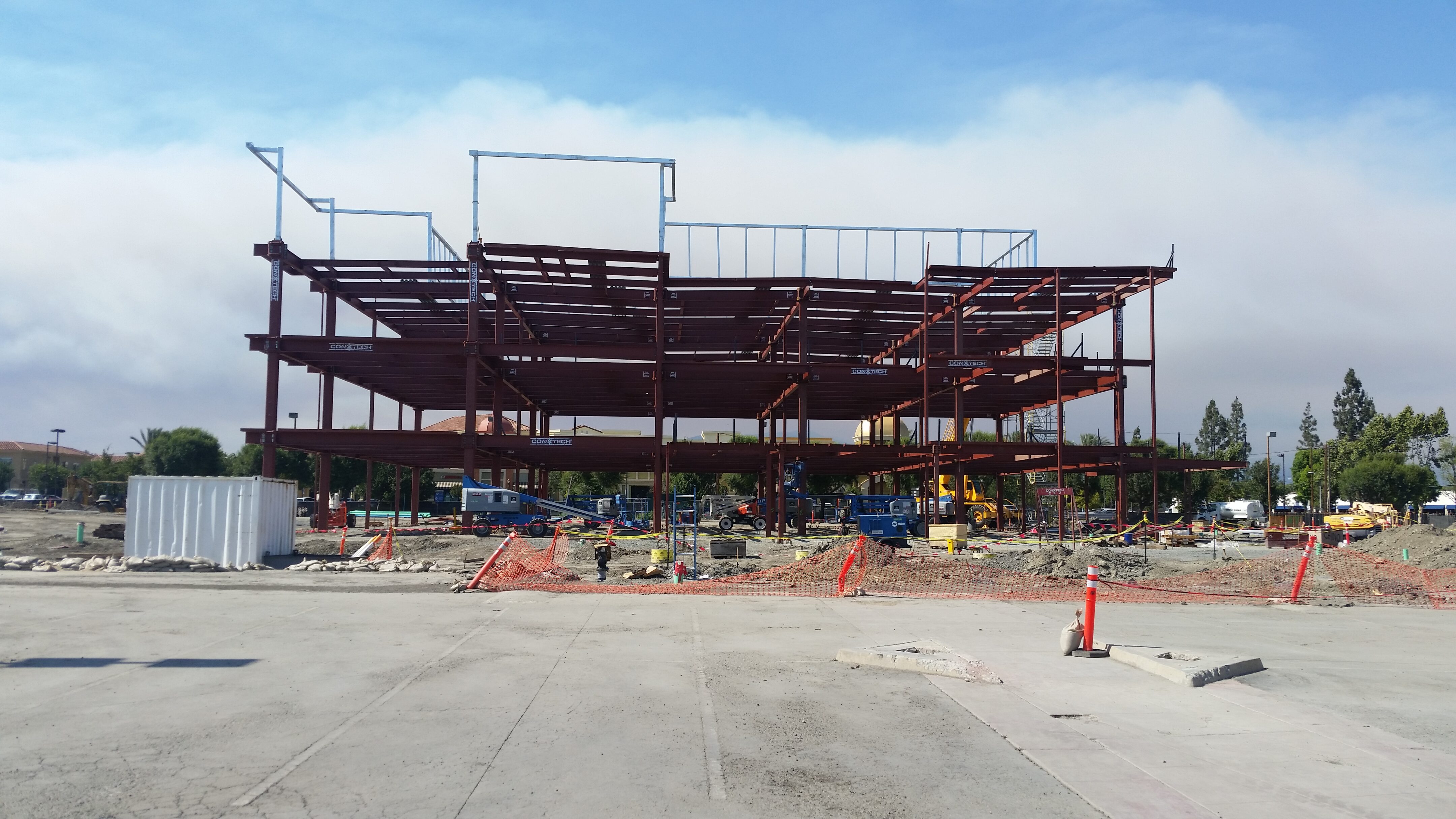

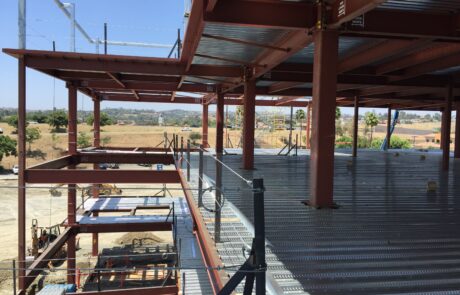

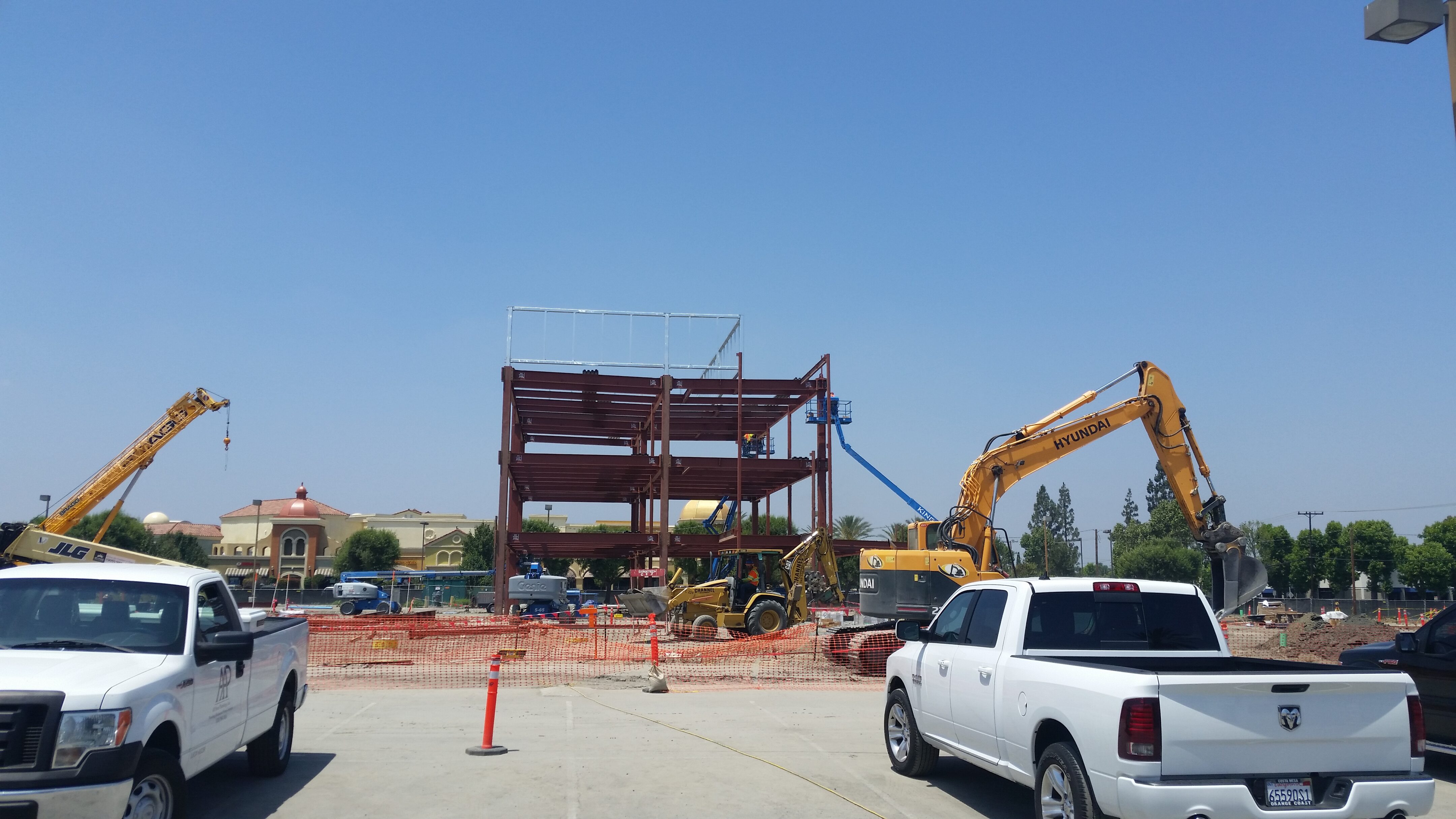

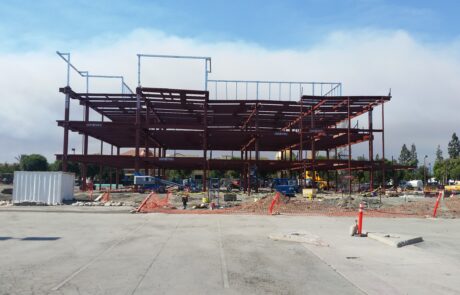

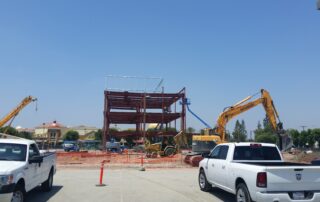

The steel for this LEED Gold facility was erected in just 6 days. The ConXL System seamlessly incorporated the architectural features, including the entrance canopy with exposed steel.

Download Project Bio

More Information

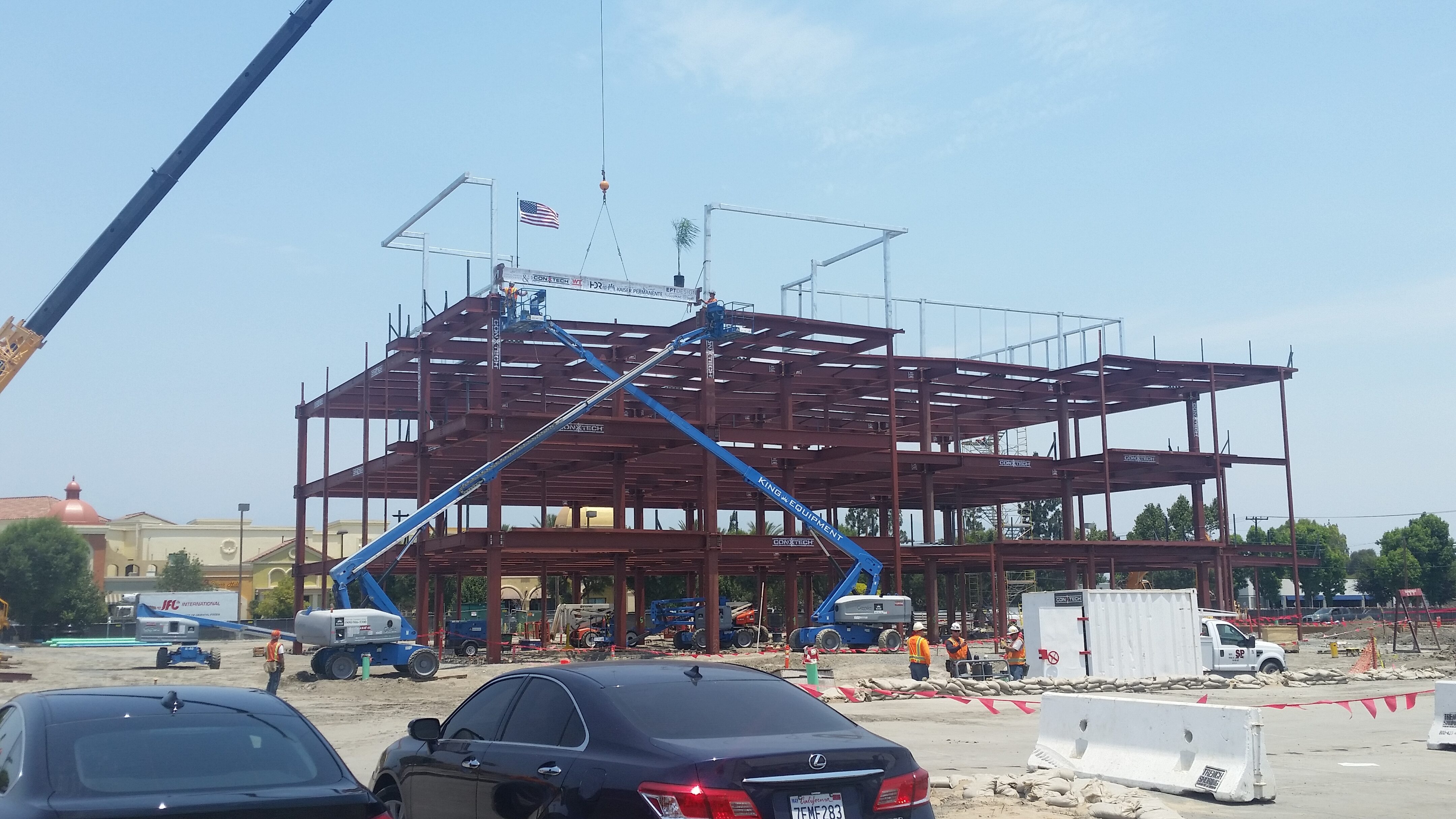

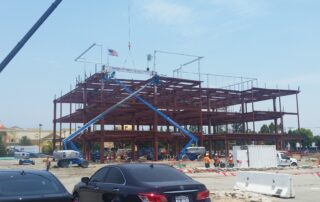

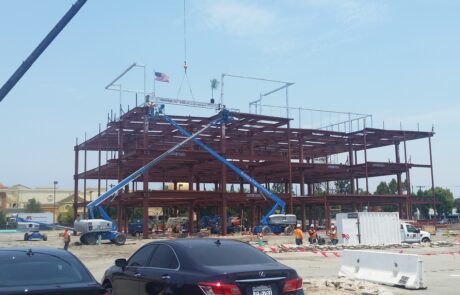

Kaiser Permanente Press Release, signing the final “top-out” beam for Chino Grand
Kaiser Permanente Press Release for breaking ground at Chino Grand site

This project has a ConXL 400 chassis:

Lower & Locking™ Connection

ConXL 400

Height & Assembly Speed

  • 2 to 10 Stories

  • 10 to 15,000 ft2 per day

Design Parameters

Column Size 400 mm (16″ HSS or Box)
Beam Depth 18″ to 30″ for SMF, deeper for OMF
Beam Spans 18′ to 45’+
