Project Description

Lawson Lane

Project Details

0
square feet
0
days to erect
Location: Santa Clara, CA
Owner: Sobrato Development Company
GC: Sobrato Construction
Architect:
Form4 Architects

Project Narrative

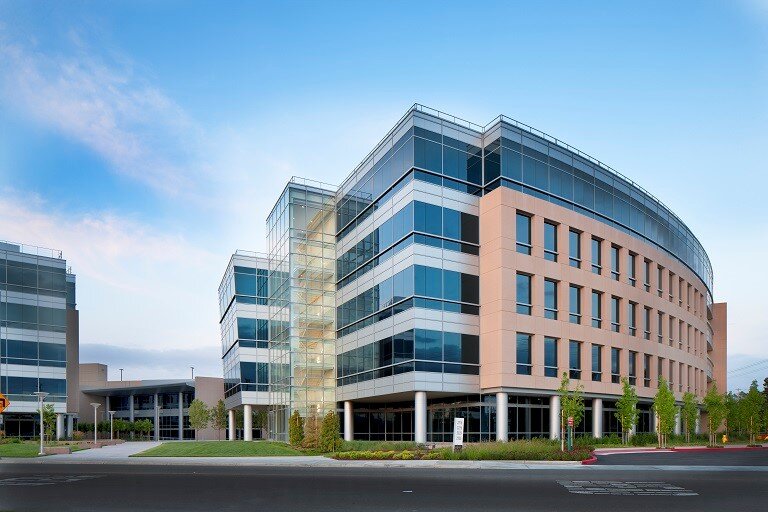

The Lawson Lane Campus, located at Central Expressway and San Tomas in Santa Clara, CA, is the development of three new office buildings totaling 516,000 ft2. It is being developed by Sobrato Development Companies. The buildings will incorporate sustainable features throughout and be designed to achieve a minimum LEED® Silver certification. Design features include a network of bio-swales designed to help control water runoff, vertical translucent glass sunshades integrated into the building façade to allow the maximum amount of daylight while controlling glare, photovoltaic panels integrated into a trellis structure and the reuse of site demolition materials in the building construction.

ConX Solutions

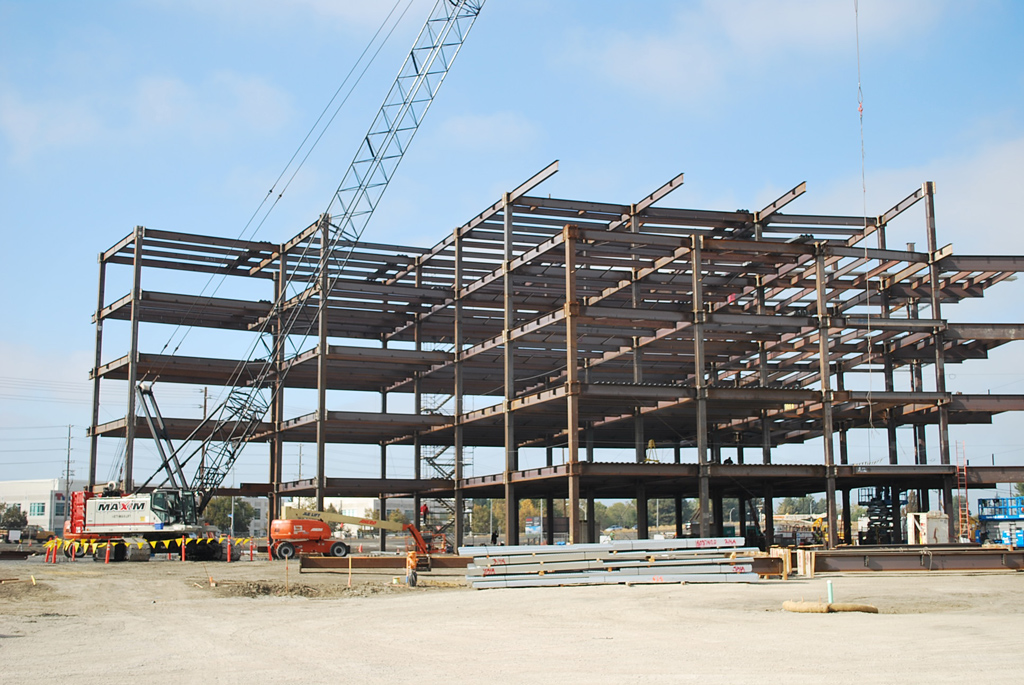

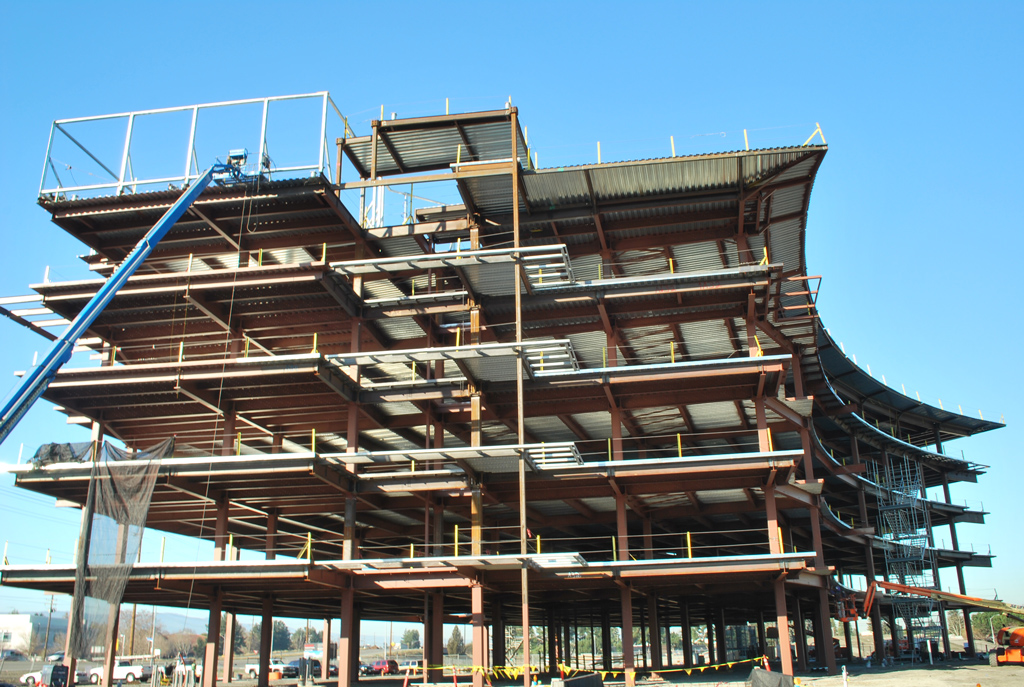

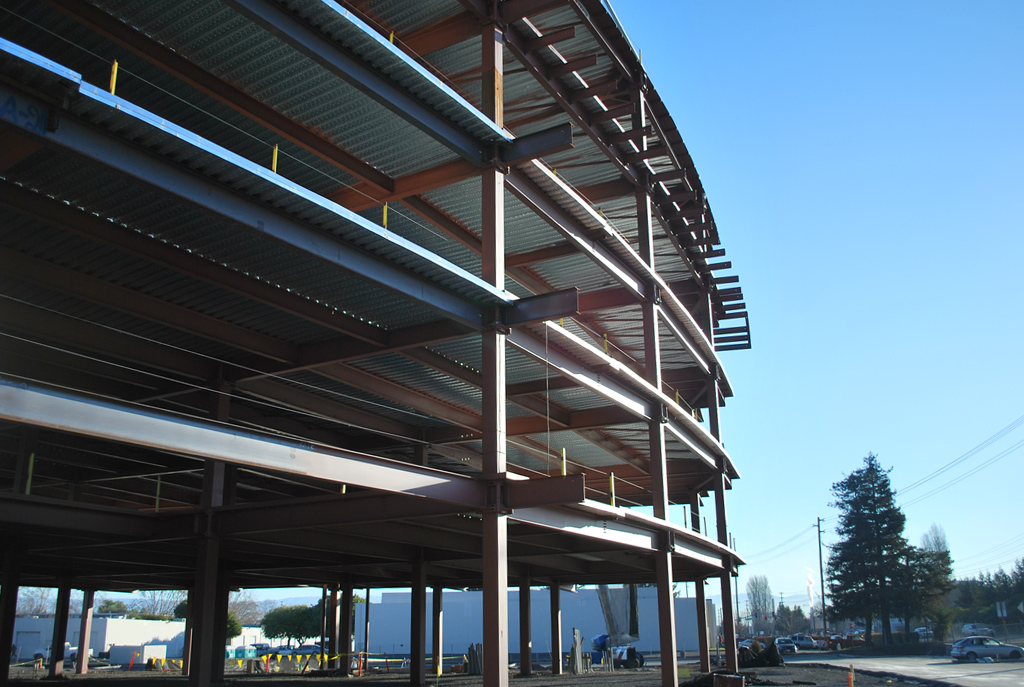

A radial grid posed a challenge for our research and development team in the creation of offsetting ConXL Top and Bottom Flange Collars to create a segmented radial structural moment frame. ConXtech now has a standardized solution for horizontally or vertically offset beams up to 8 degrees.

Download Project Bio

More Information

For more information about this project, see the City of Santa Clara website.

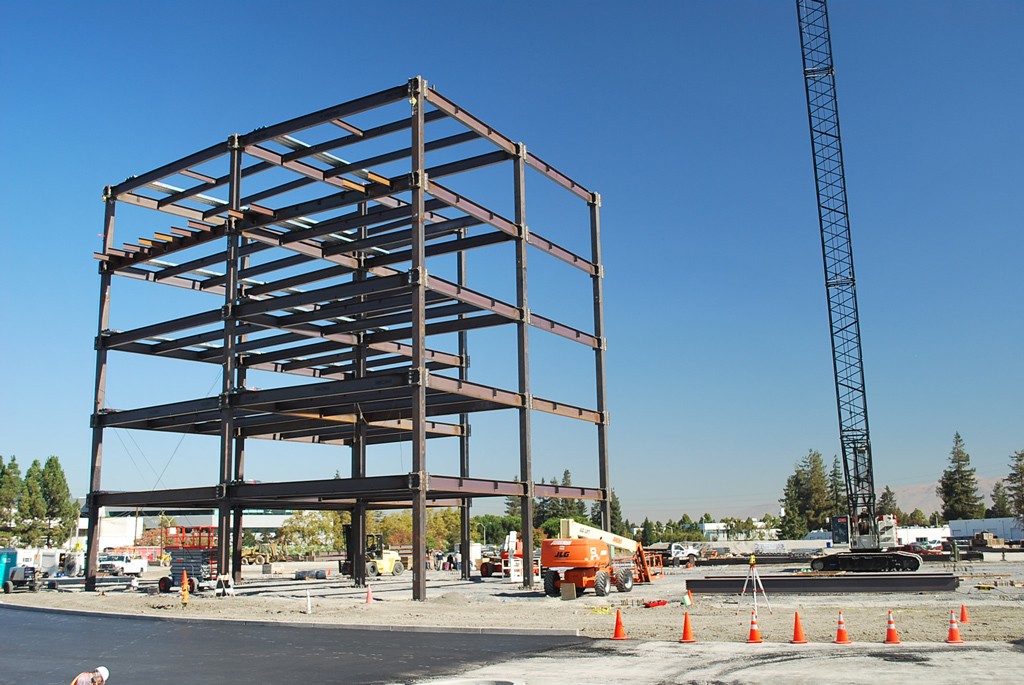

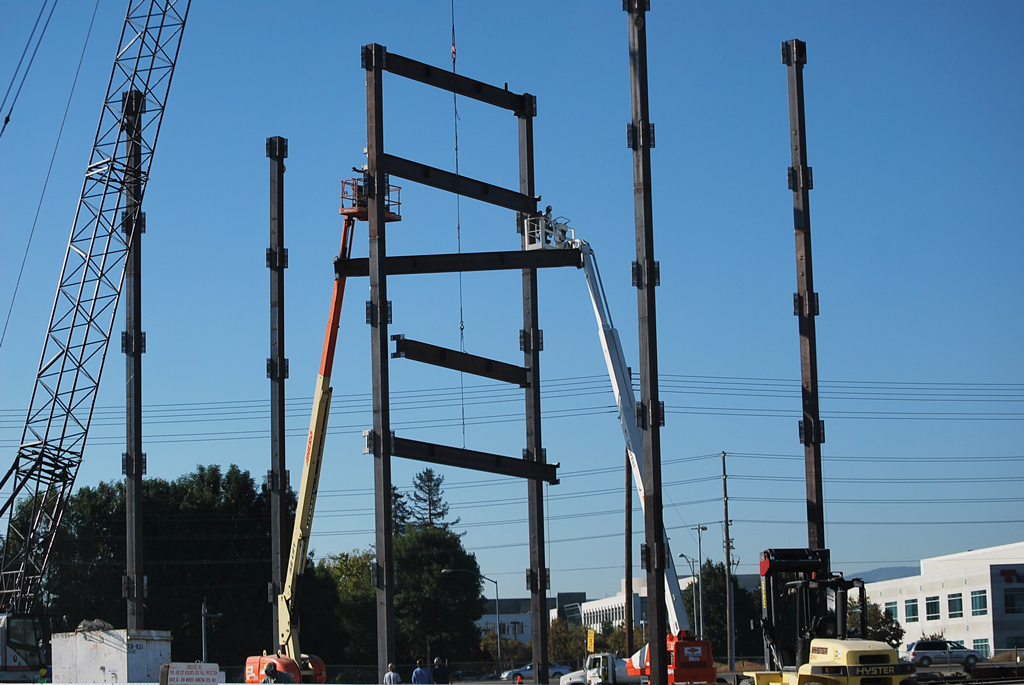

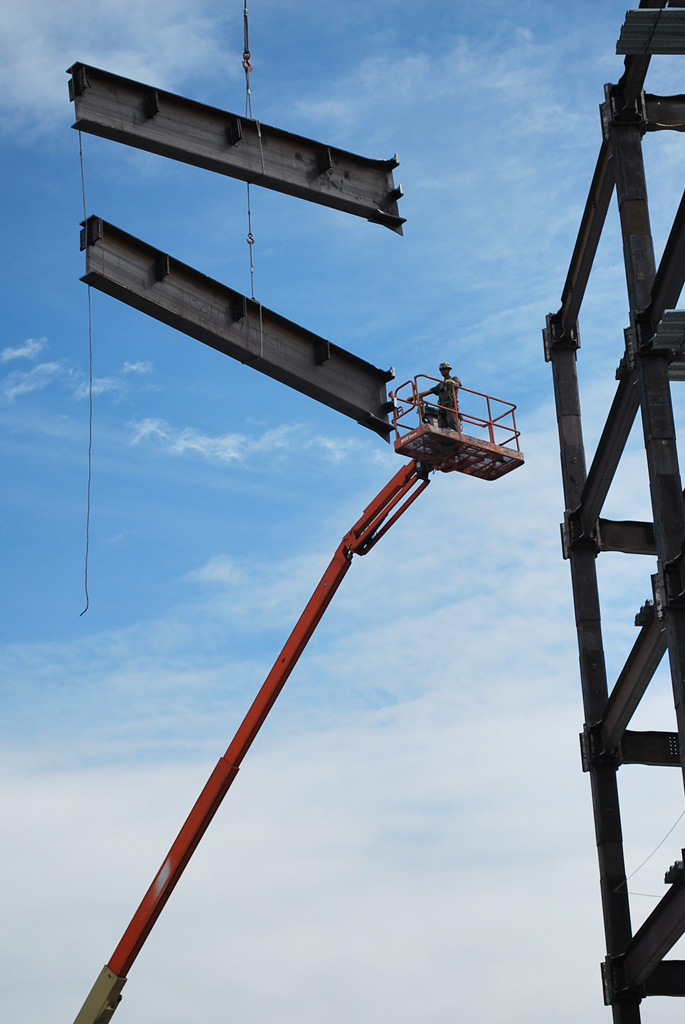

Photo Gallery

This project has a ConXL 400 chassis:

Lower & Locking™ Connection

ConXL 400

Height & Assembly Speed

  • 2 to 10 Stories

  • 10 to 15,000 ft2 per day

Design Parameters

Column Size 400 mm (16″ HSS or Box)
Beam Depth 18″ to 30″ for SMF, deeper for OMF
Beam Spans 18′ to 45’+
