Project Description

Pacific City

Project Details

0
square feet
0
days to erect
Location: Huntington Beach, CA
Owner: DJM Capital
GC: C.W. Driver Builders
Engineer: FWC Structural Engineers
Architect: SMS Architects

Project Narrative

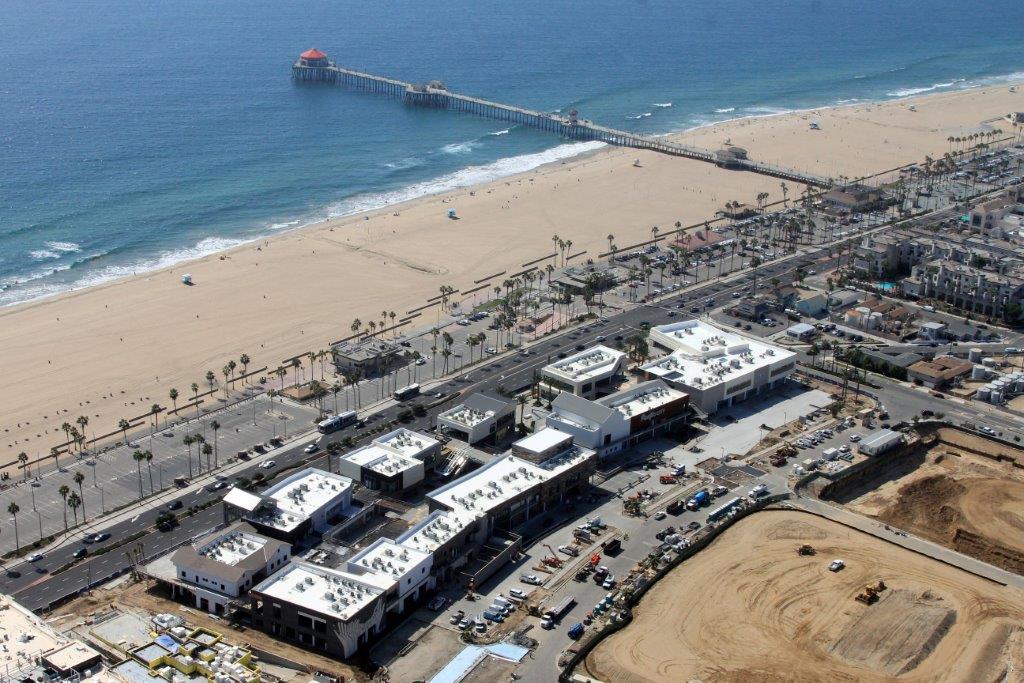

This 3-story ConXL structure sits atop a 2-story parking garage. Street level retail areas complete this innovative building located directly on Pacific Coast Highway and the beach.

This project was complicated by the need to configure and anchor the ConXL columns to existing concrete columns previously poured and set within the existing parking garage structure.

Download Project Bio

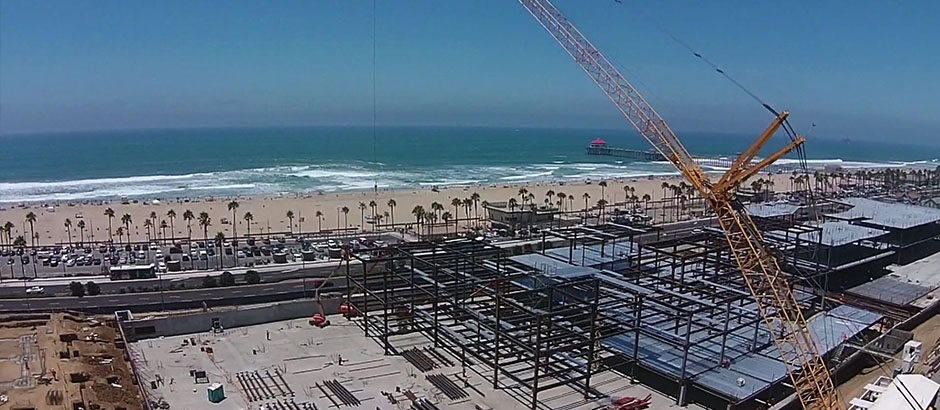

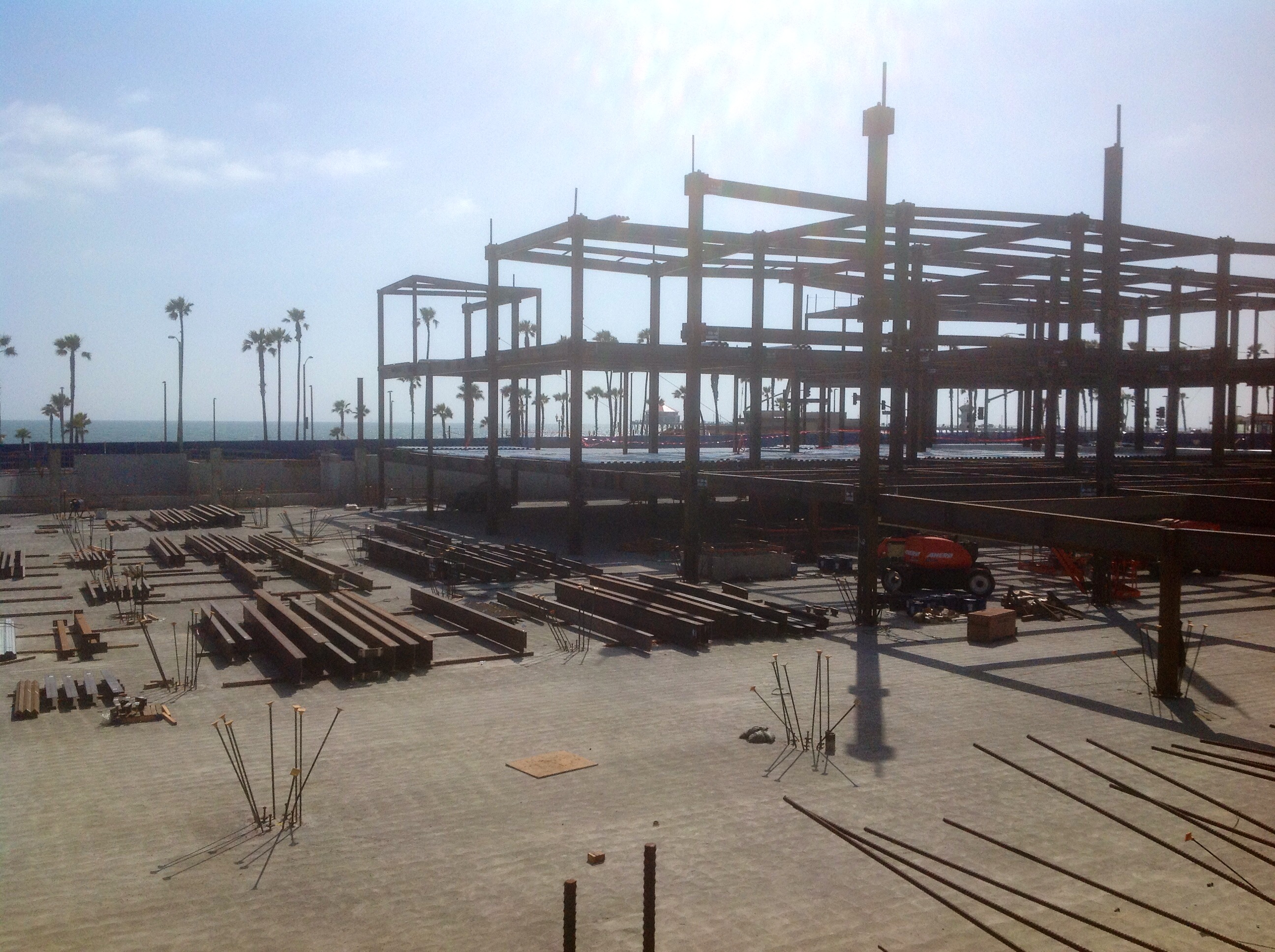

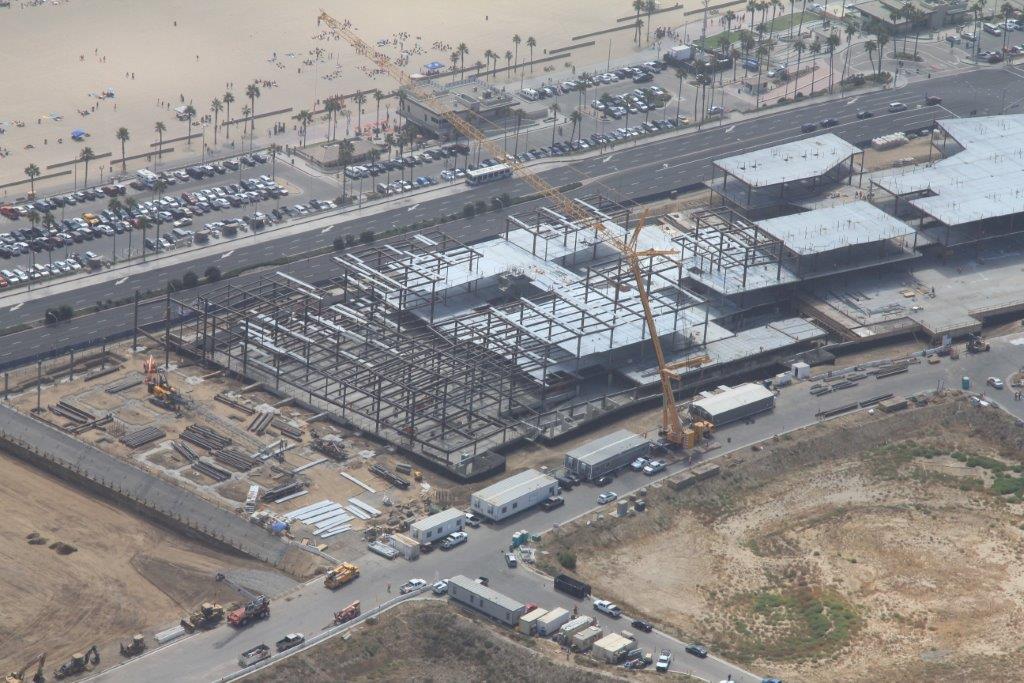

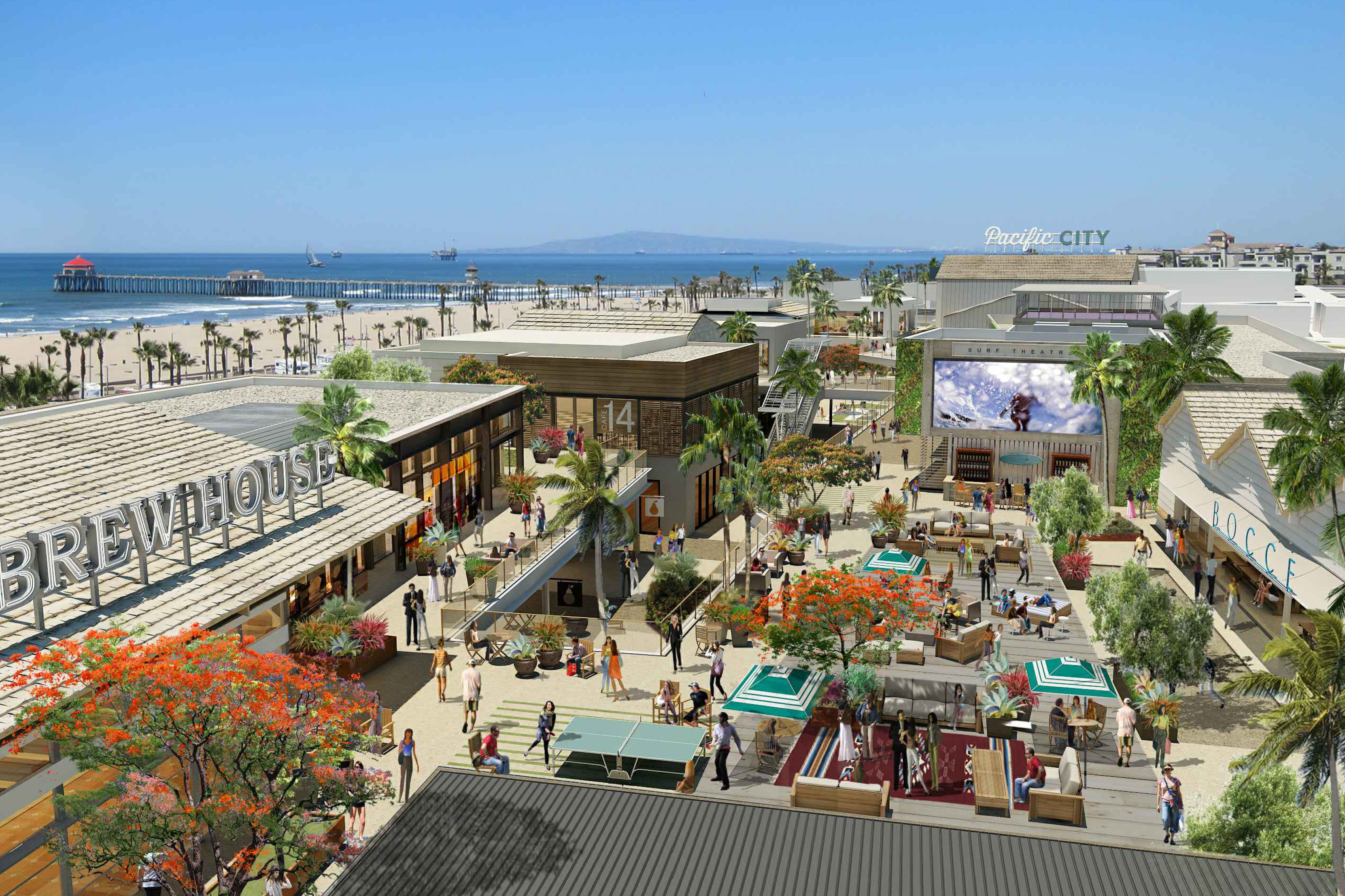

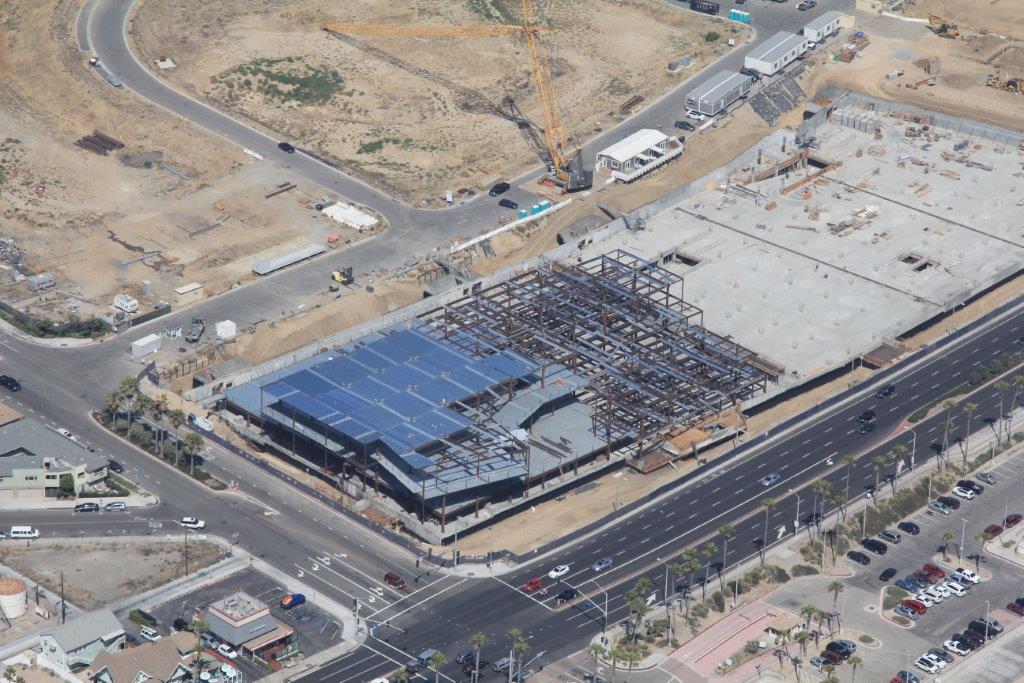

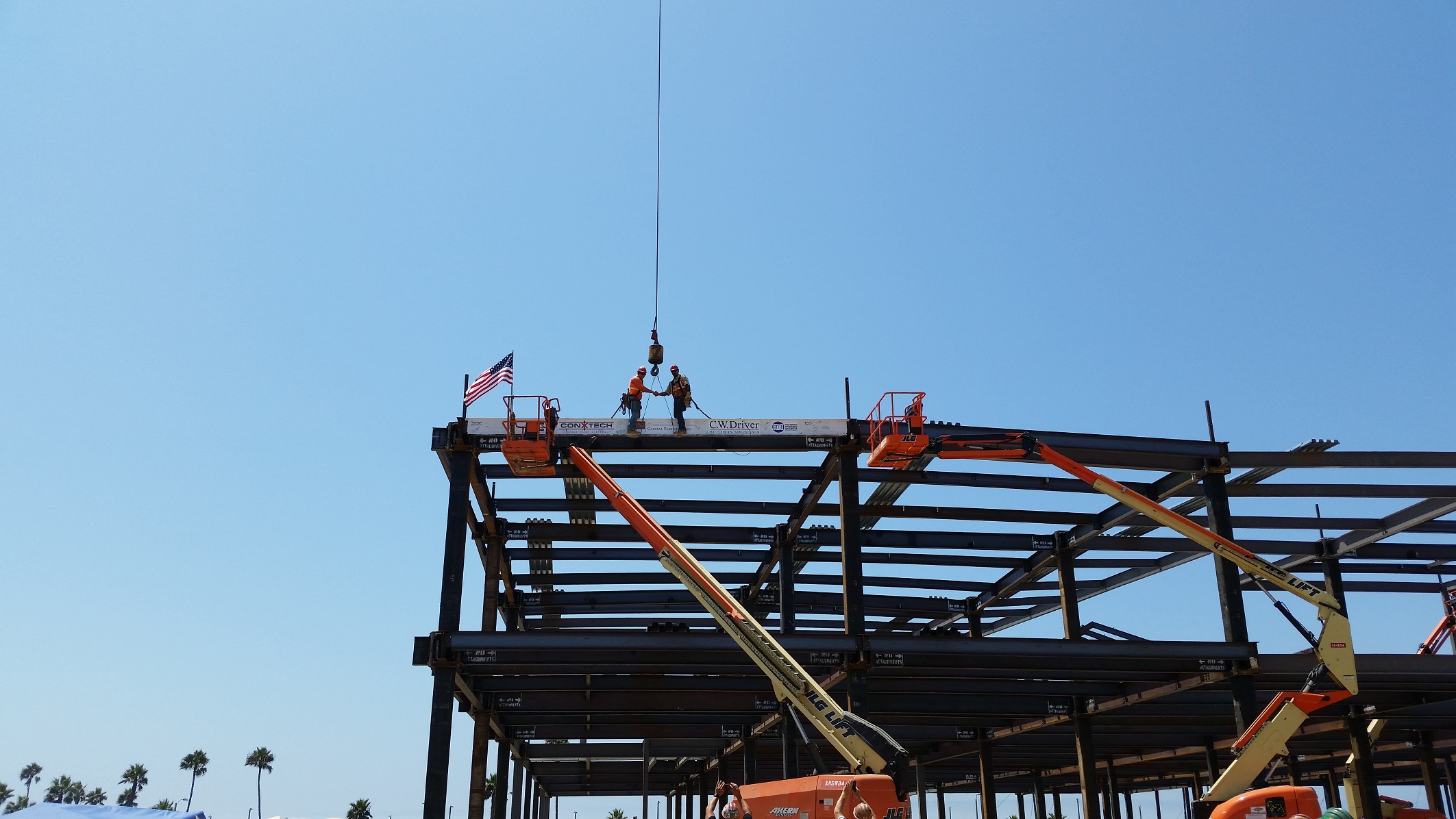

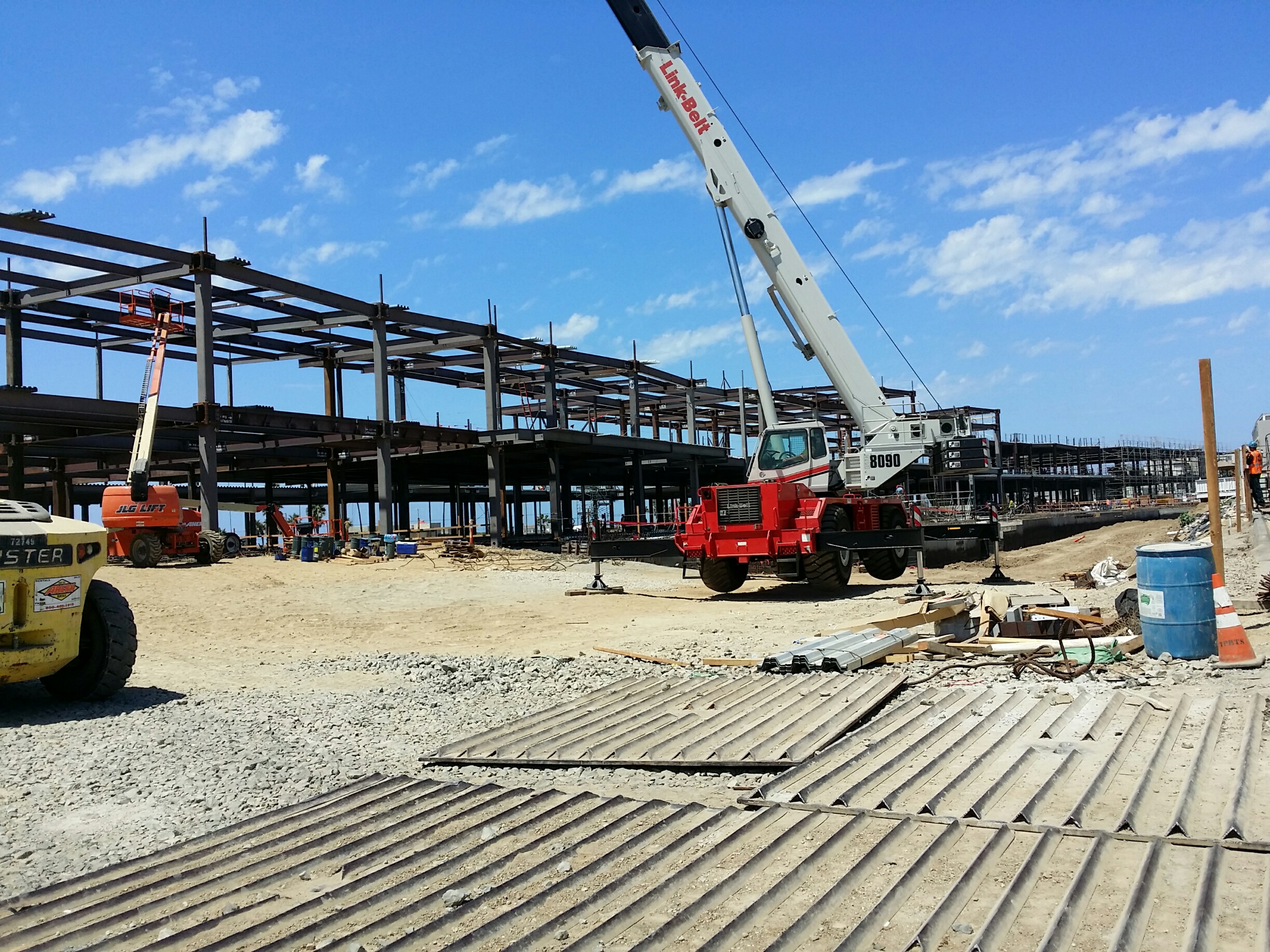

Photo Gallery

This project has a ConXL 400 chassis:

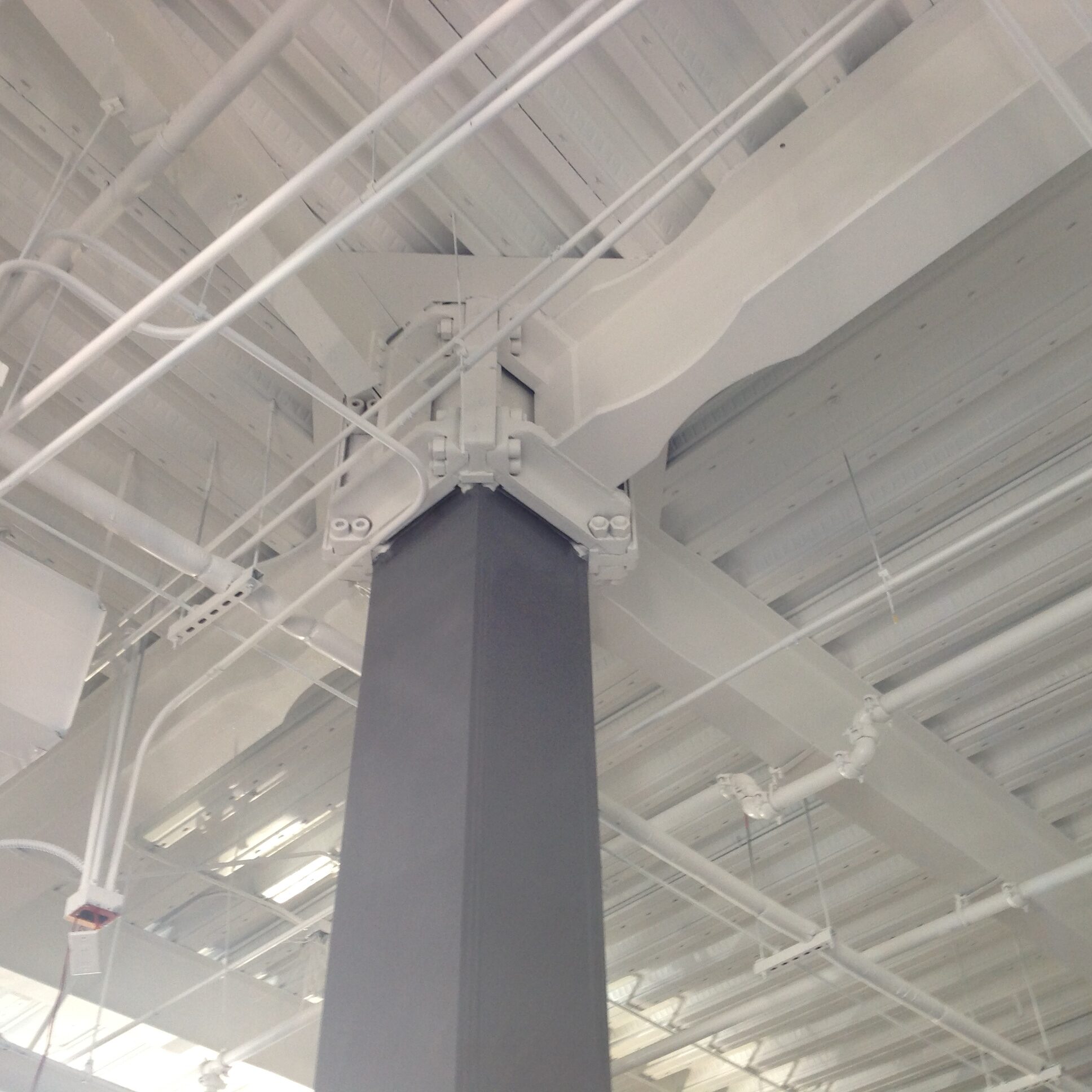

Lower & Locking™ Connection

ConXL 400

Height & Assembly Speed

  • 2 to 10 Stories

  • 10 to 15,000 ft2 per day

Design Parameters

Column Size 400 mm (16″ HSS or Box)
Beam Depth 18″ to 30″ for SMF, deeper for OMF
Beam Spans 18′ to 45’+
