Project Description

Vidrio

Project Details

0
square feet
0
days to erect
Location: Pittsburg, CA
Owner: AF Evans
Architect: Dahlin Group

Project Narrative

This 5-story, 120,100 ft2 mixed use development in Pittsburg, CA features 196 units on top of nearly 40,000 ft2 of retail space below. Also included are two public plazas. This development on Railroad Avenue, the city’s main drag, is a key piece to the revitalization of downtown Pittsburg. The ConXR System is a good solution for this type of residential over retail structure due to cost savings and layout flexibility.

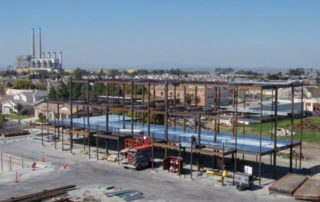

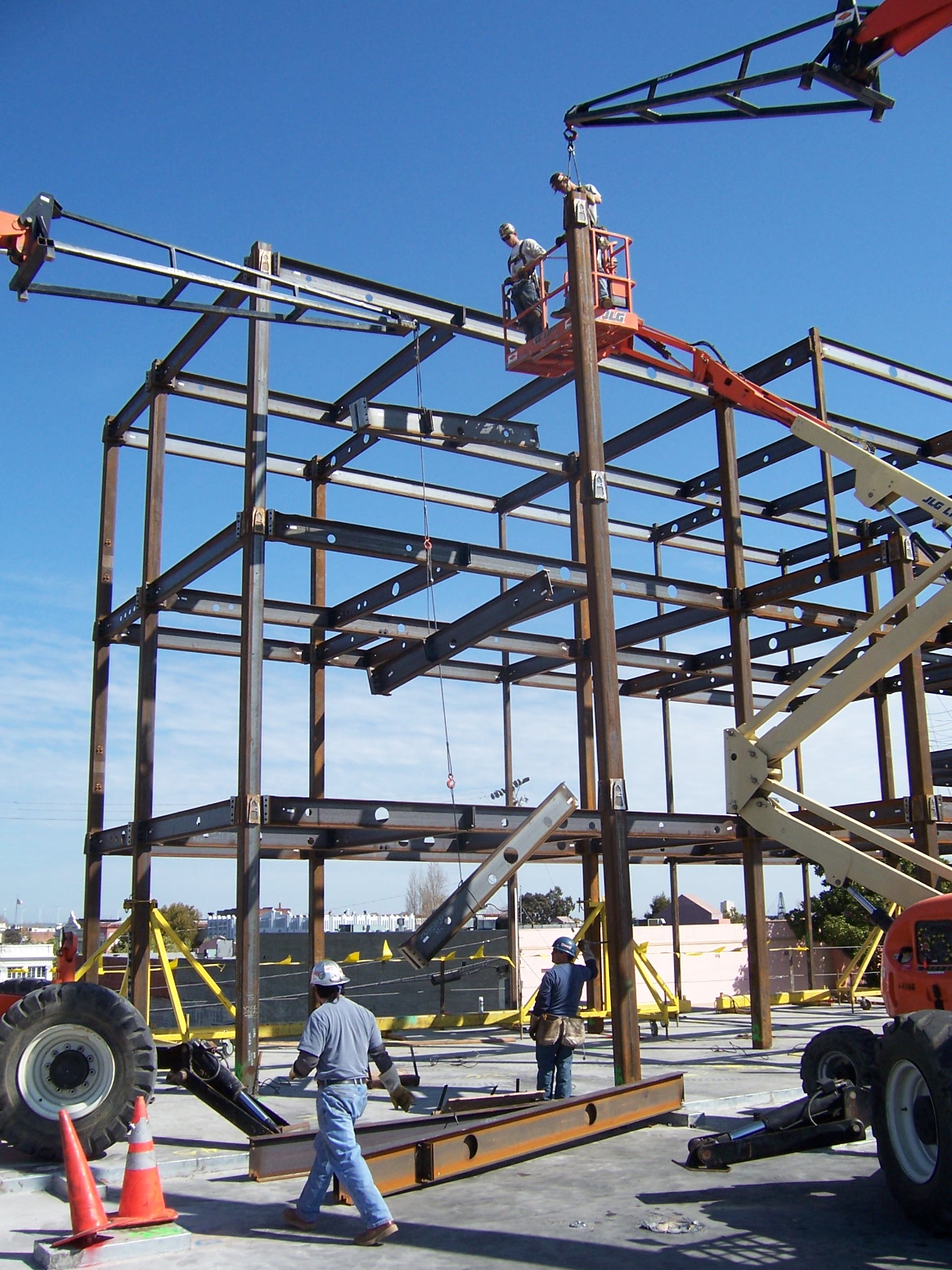

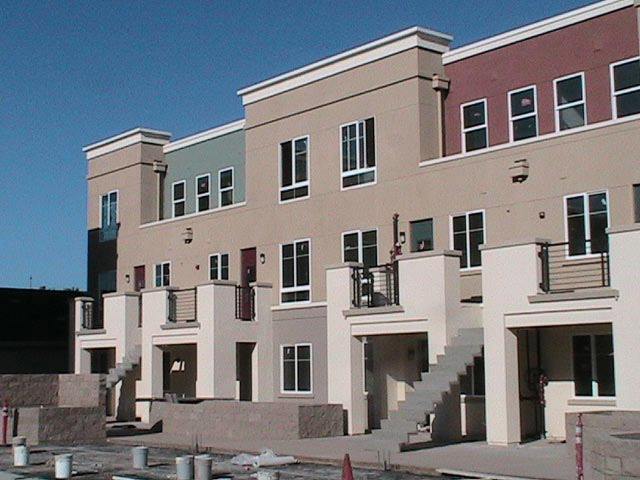

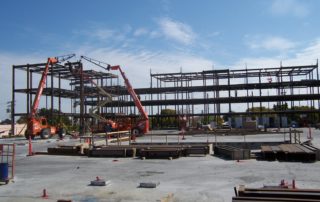

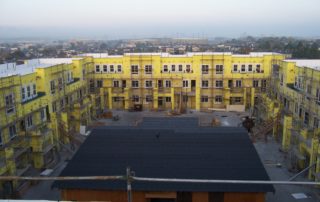

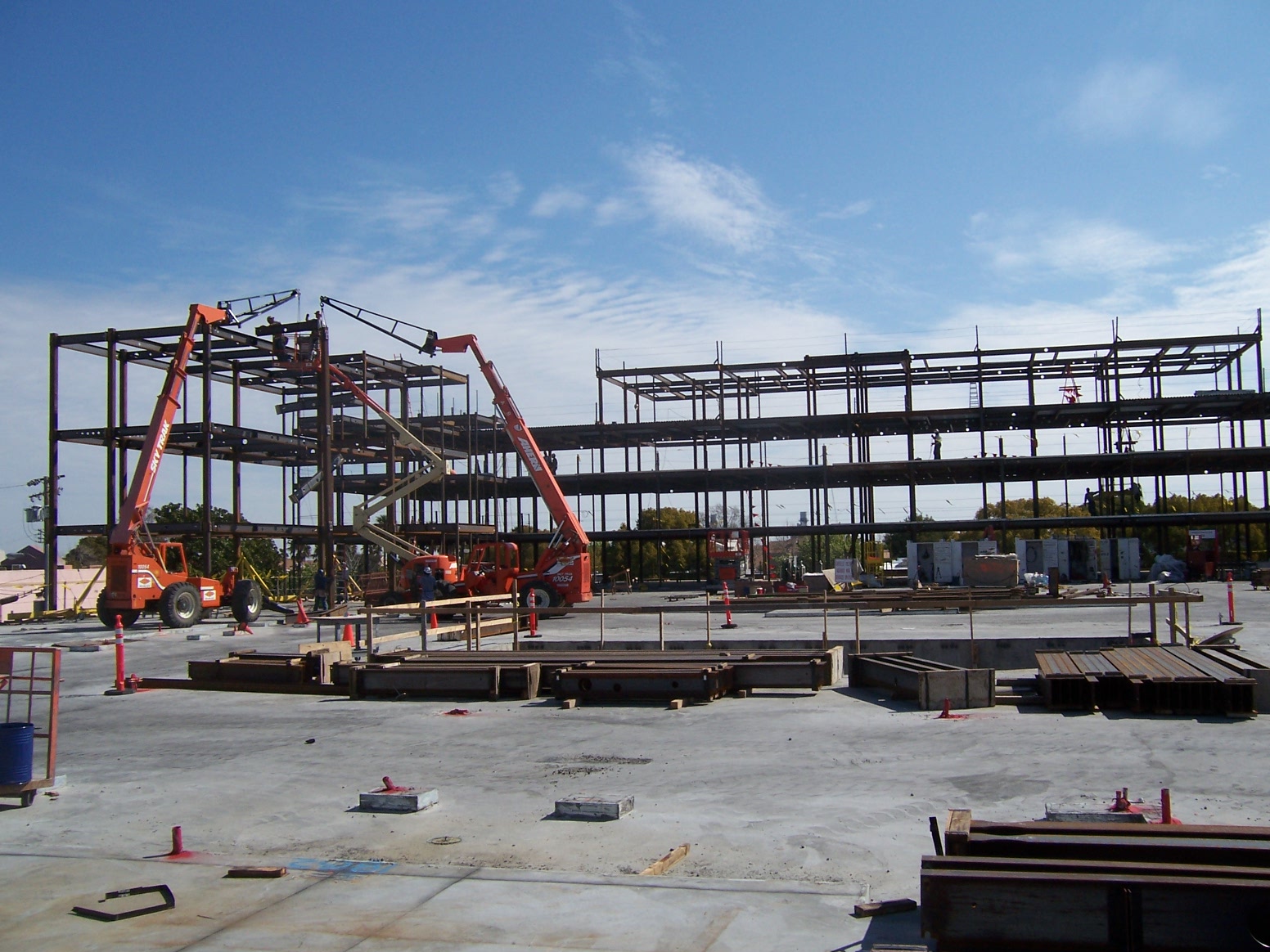

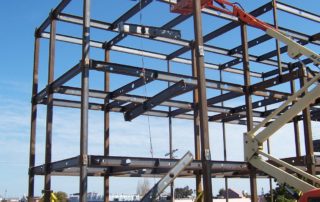

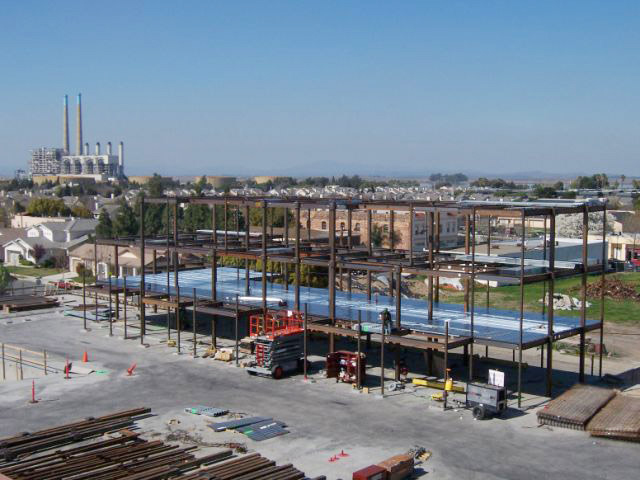

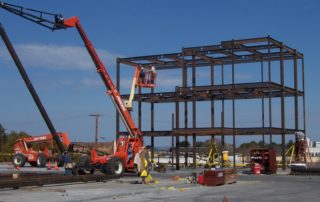

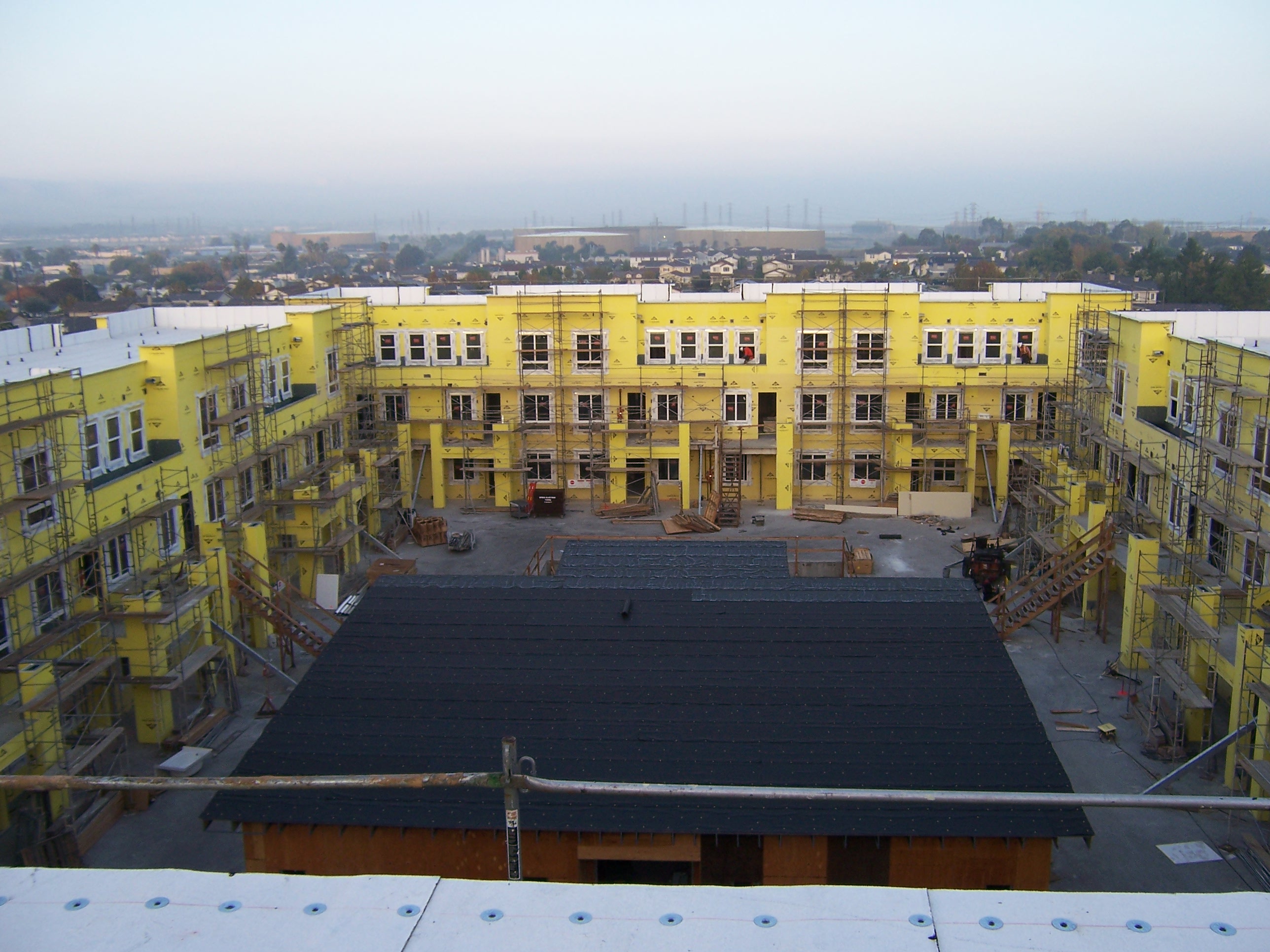

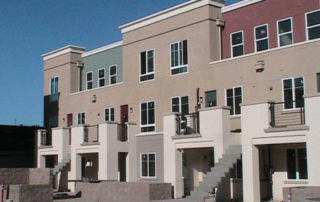

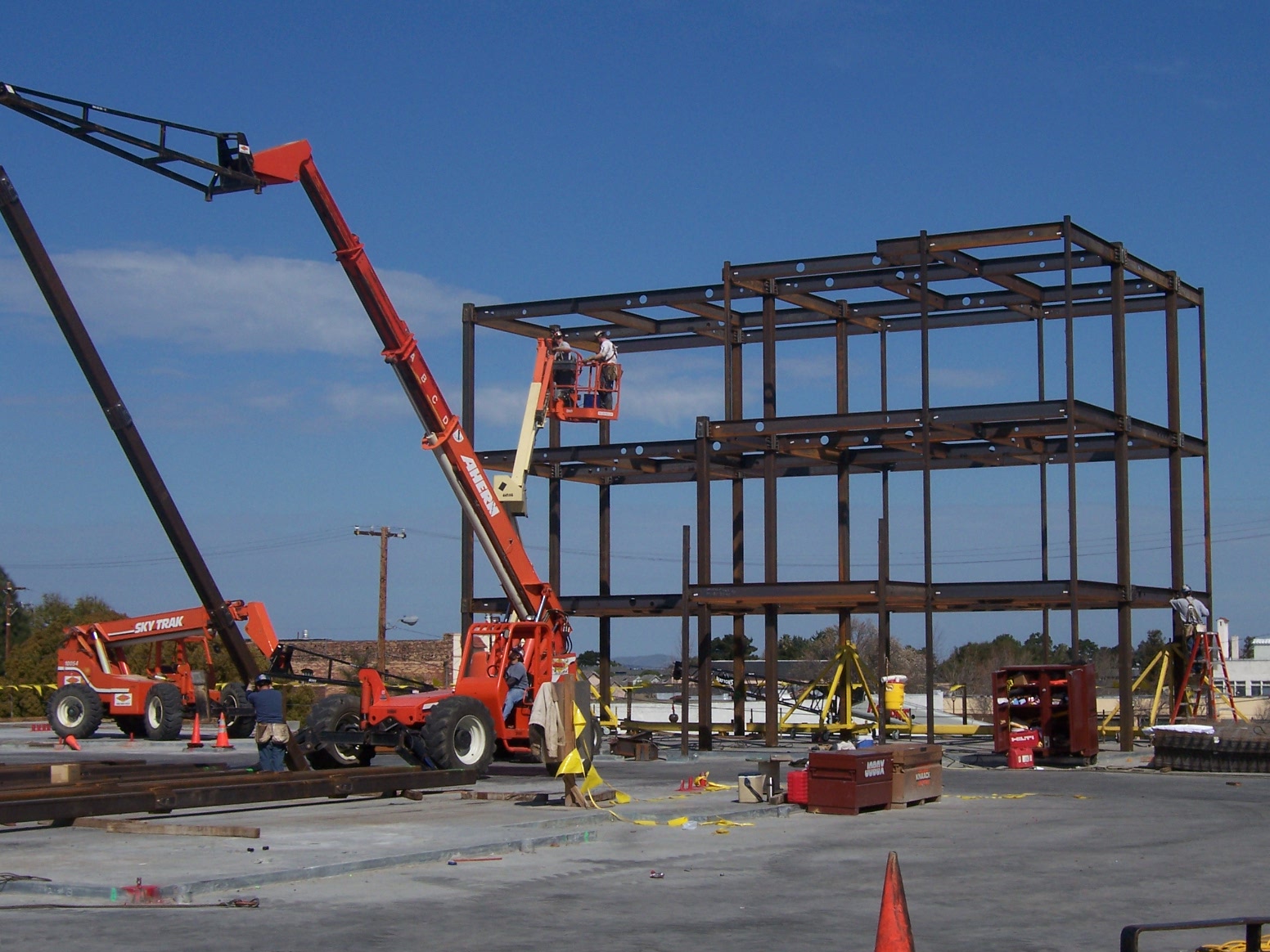

Photo Gallery

This project has a ConXR™ 200 chassis:

Lower & Locking™ Connection

ConXR 200 System Connection
ConXR 200

Height & Assembly Speed

  • 4 to 8 Stories, up to 12

  • 3 to 5,000 ft2 per day

Design Parameters

Column Size 200 mm (8″ HSS)
Beam Depth 12″ (variable weight)
Beam Spans 8′ to 20′
