Project Description

Downtown West MOB

Project Details

0
square feet
0
days to erect
Location: Los Angeles, CA
Owner: Robhana Group
GC: Oltmans Construction Co.
Engineer: KPFF
Architect: Ware Malcomb

Project Narrative

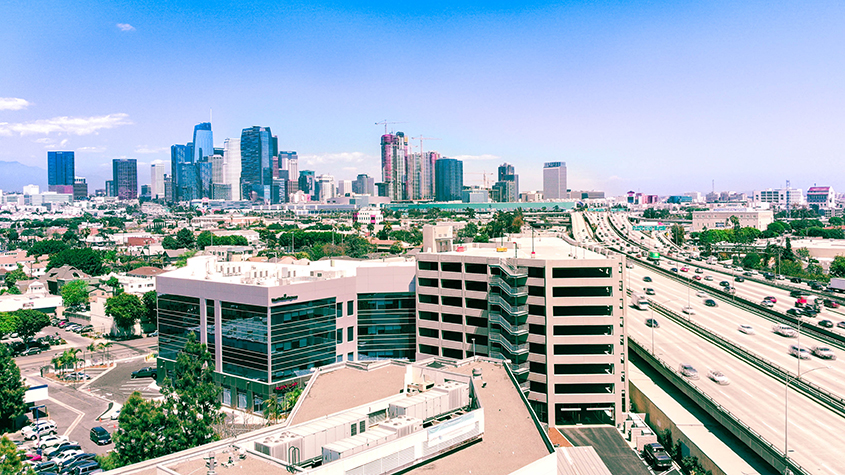

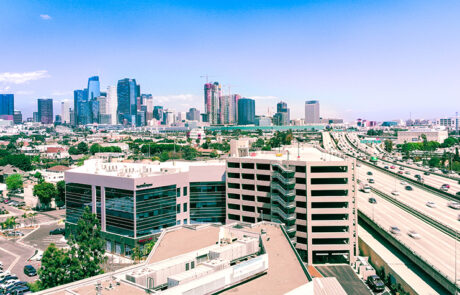

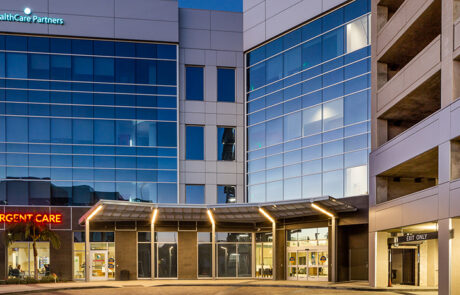

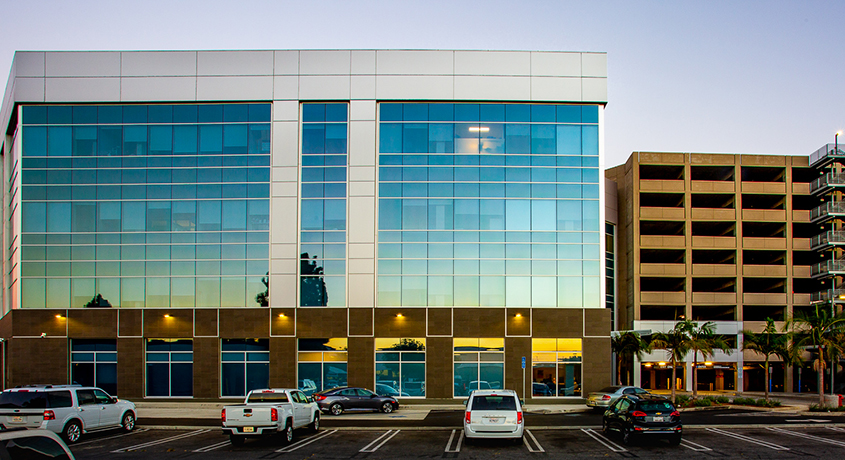

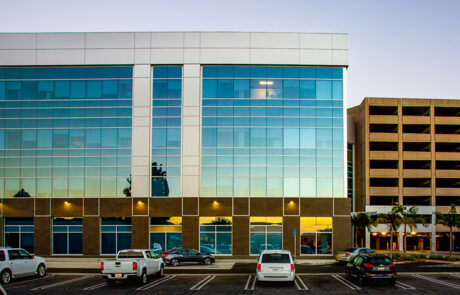

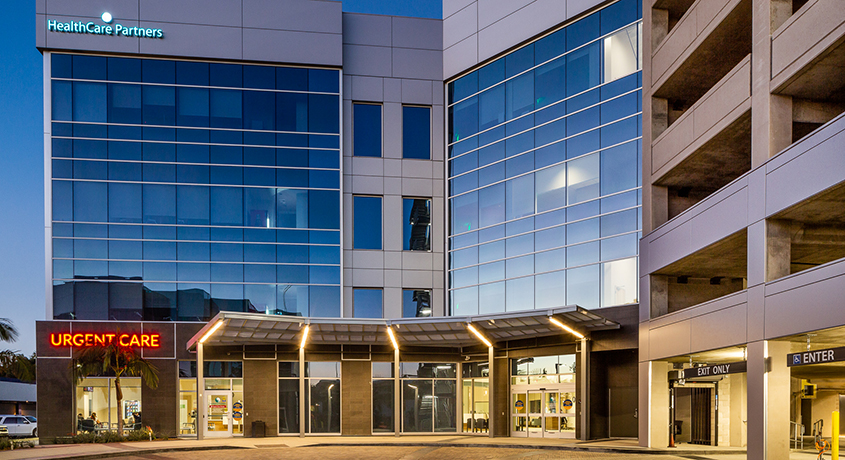

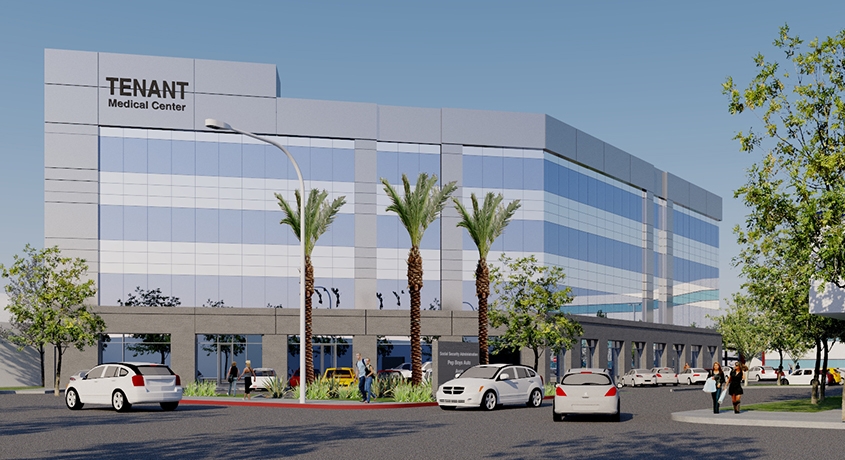

ConXtech assembled this four-story, 57,700 ft² structure adjacent to the I-10 corridor in Los Angeles, one of the busiest roadways in the country. As a Class-A medical office building, it’s the only one of its kind in the West Downtown LA area.

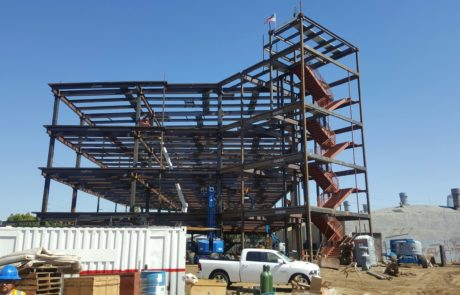

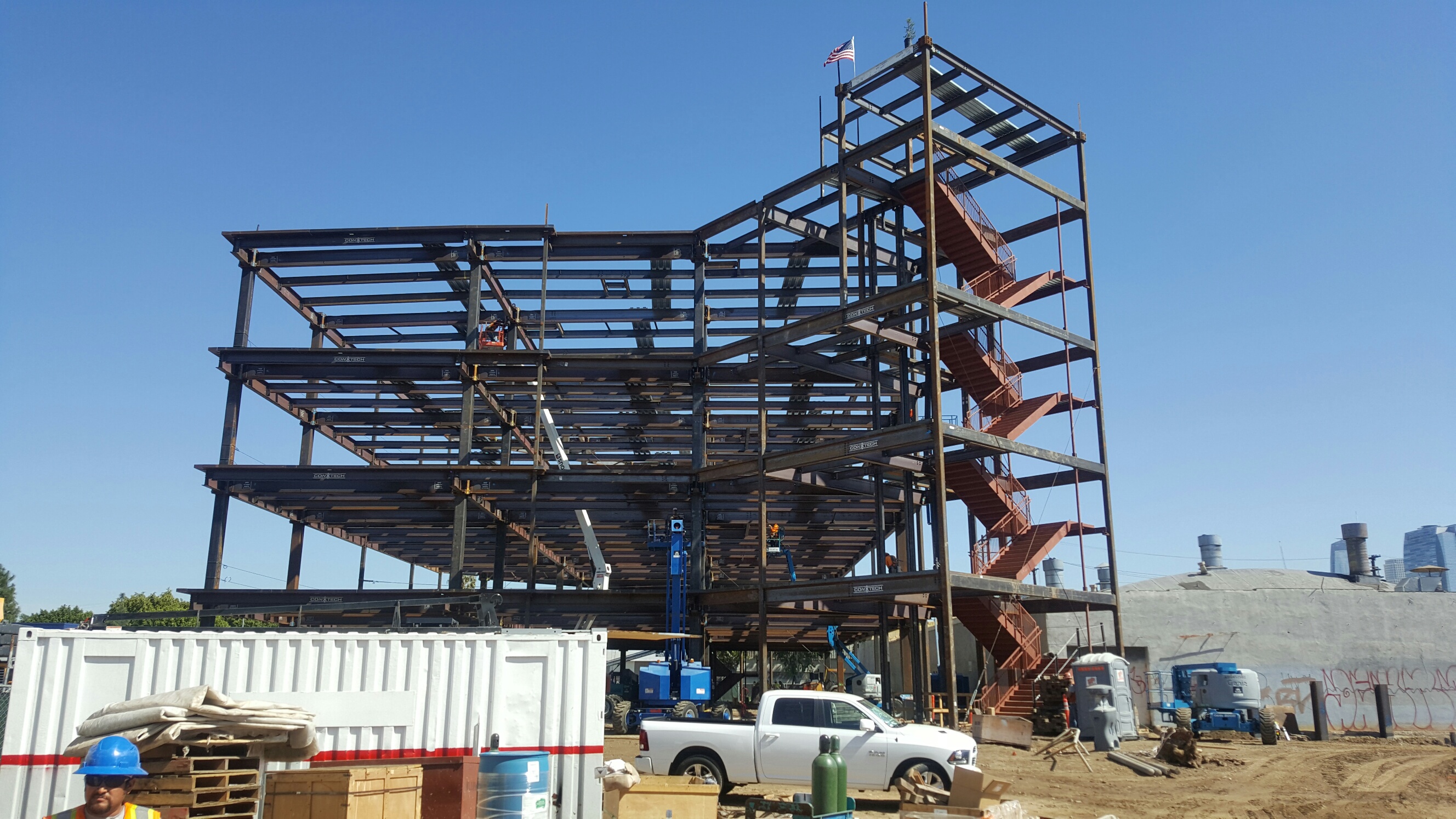

This structure’s unique, angular geometry is an example of how the ConX chassis is not confined to rectilinear shapes. With the ConXL 400 System, it was erected in just 9 days – a fraction of the time it would have taken using any other structural framing system. ConXtech’s just in time delivery easily accommodated assembly on an extremely tight lot, with buildings in very close proximity on two sides, and the freeway immediately to the rear.

Download Project Bio

More Project Information

Article: Medical Offices Break Ground West of DTLA (urbanize.LA)
Oltmans Construction Project Page: Downtown West MOB

Photo Gallery

This project has a ConXL 400 chassis:

Lower & Locking™ Connection

ConXL 400

Height & Assembly Speed

  • 2 to 10 Stories

  • 10 to 15,000 ft2 per day

Design Parameters

Column Size 400 mm (16″ HSS or Box)
Beam Depth 18″ to 30″ for SMF, deeper for OMF
Beam Spans 18′ to 45’+
