Project Description

Moffett Field

Project Details

0
square feet
0
days to erect
Location: Moffett Field, CA
Owner: US Army Corps of Engineers
GC: Walbridge/Overaa, a Joint Venture
Engineer: GPLA – Gregory P. Luth and Associates
Architect: Barge Wagonner Sumner & Cannon

Project Narrative

Armed Forces Reserve Center (AFRC) located at Moffett Field, CA. Upon completion, the project was LEED® certified by the U.S. Green Building Council. The 30-acre site supports regional Army Reserve units with an Armed Forces Reserve Center, a Regional Readiness Support Command headquarters and a fitness center. The 186,500 square-foot AFRC building provides areas for administration, training, physical fitness and equipment, and associated locker and shower space.

Project Challenges / Special Considerations

DoD requirements included Anti-Terrorism Force Protection (ATFP) steel design. A large conference area yielded large trusses connected to steel moment frames. Integrated the structural steel with a demanding radiused entry column design, yielding a superior finished product.

Download Project Bio

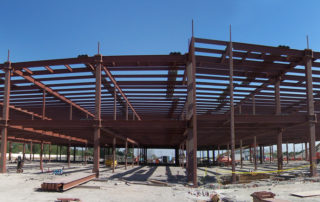

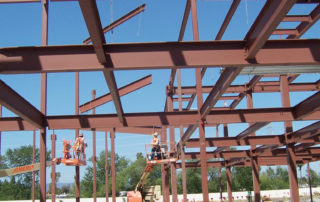

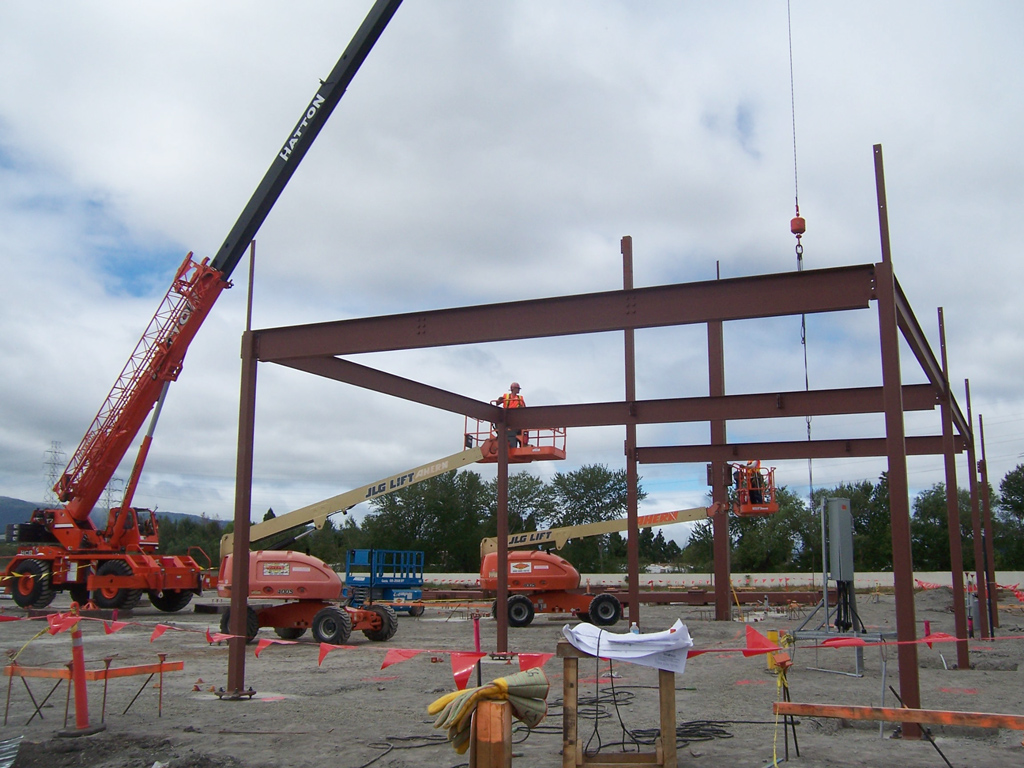

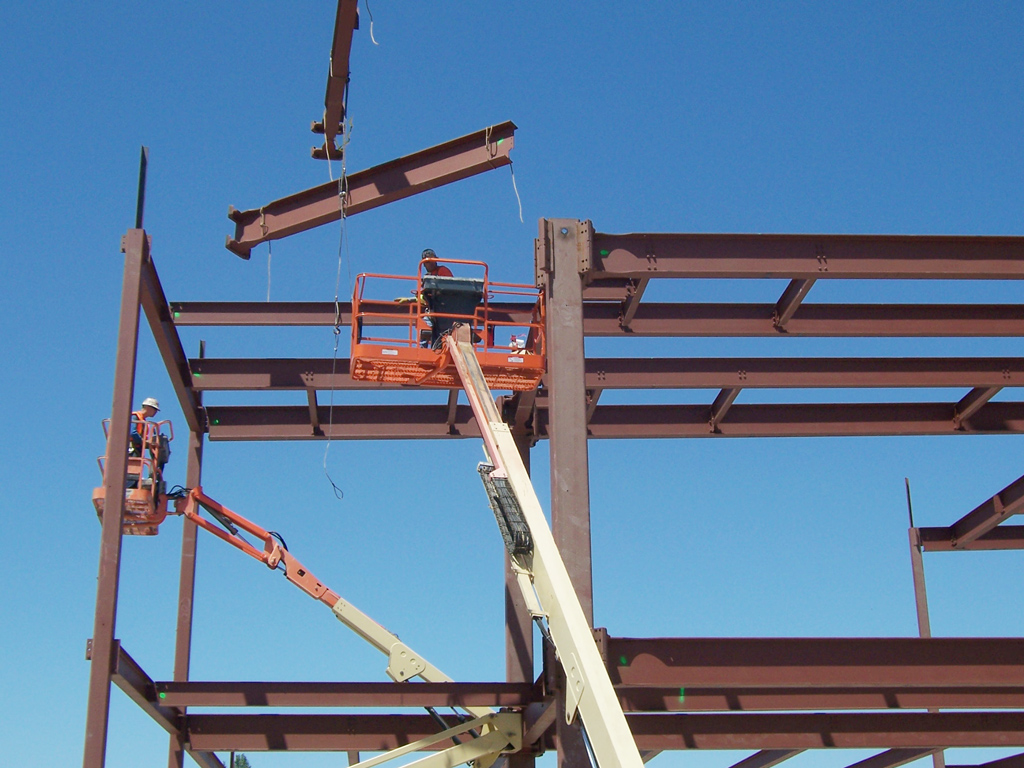

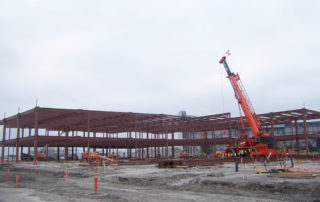

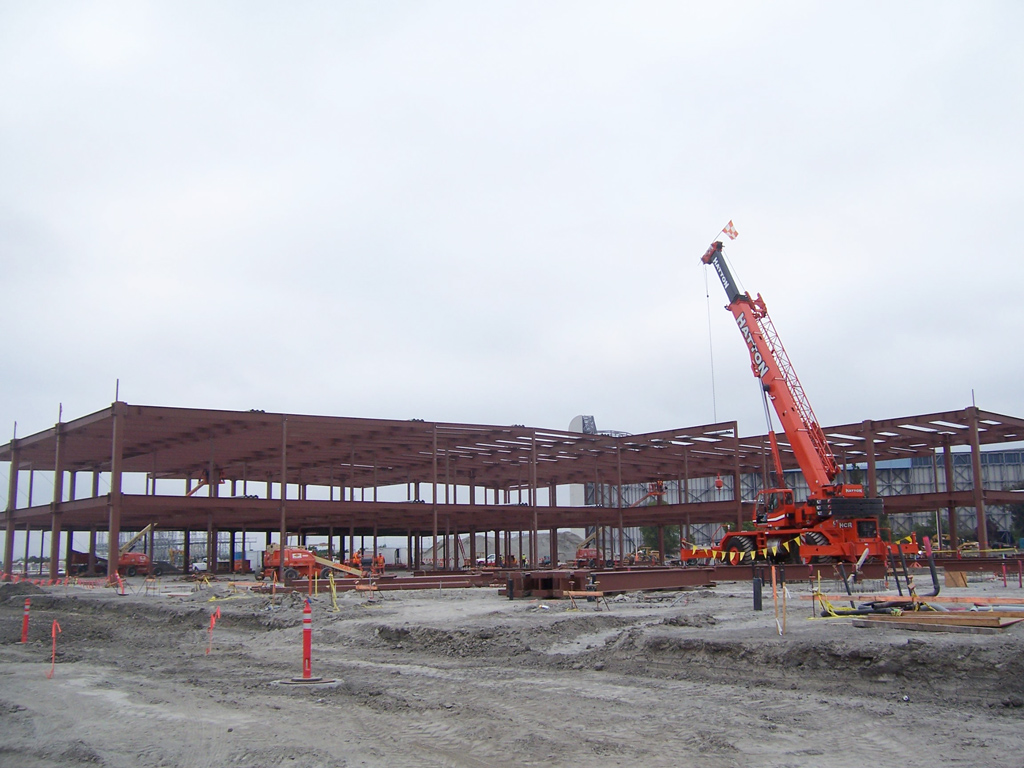

Photo Gallery

This project has a ConXL 400 chassis:

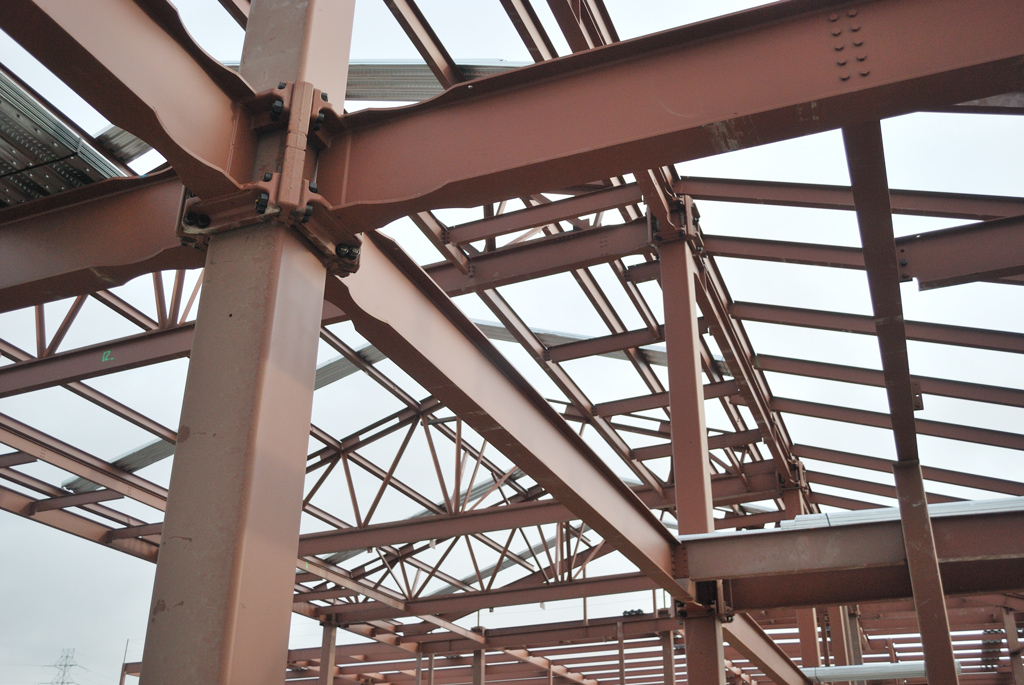

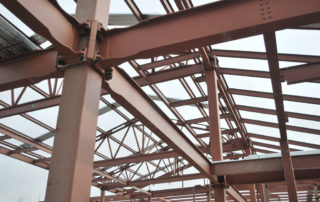

Lower & Locking™ Connection

ConXL 400

Height & Assembly Speed

  • 2 to 10 Stories

  • 10 to 15,000 ft2 per day

Design Parameters

Column Size 400 mm (16″ HSS or Box)
Beam Depth 18″ to 30″ for SMF, deeper for OMF
Beam Spans 18′ to 45’+
